Product Description
The double-layer tile pressing machine can produce two different specifications of tiles at the same time with its efficient production capacity, greatly shortening the production cycle and meeting the needs of rapid construction of industrial plants. Moreover, the tiles it produces are of reliable quality, with high dimensional accuracy after precise molding process, which can provide stable and durable roof covering for industrial plants and adapt to various climate and mechanical stresses that may be faced in industrial environments.

Main Technical Parameters

Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm

Uncoilers play an indispensable role in the production process of tile presses. In the production process of tile presses, metal sheets are usually supplied in the form of coils, and the primary function of the uncoiler is to smoothly and steadily unwind these tightly wound metal sheets.

Hydraulic Pump Station

When the equipment encounters abnormal resistance or excessive pressure, it can automatically adjust the pressure of the hydraulic system to avoid damage to the equipment due to overload, thereby improving the reliability and stability of the floor deck forming machine.

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.

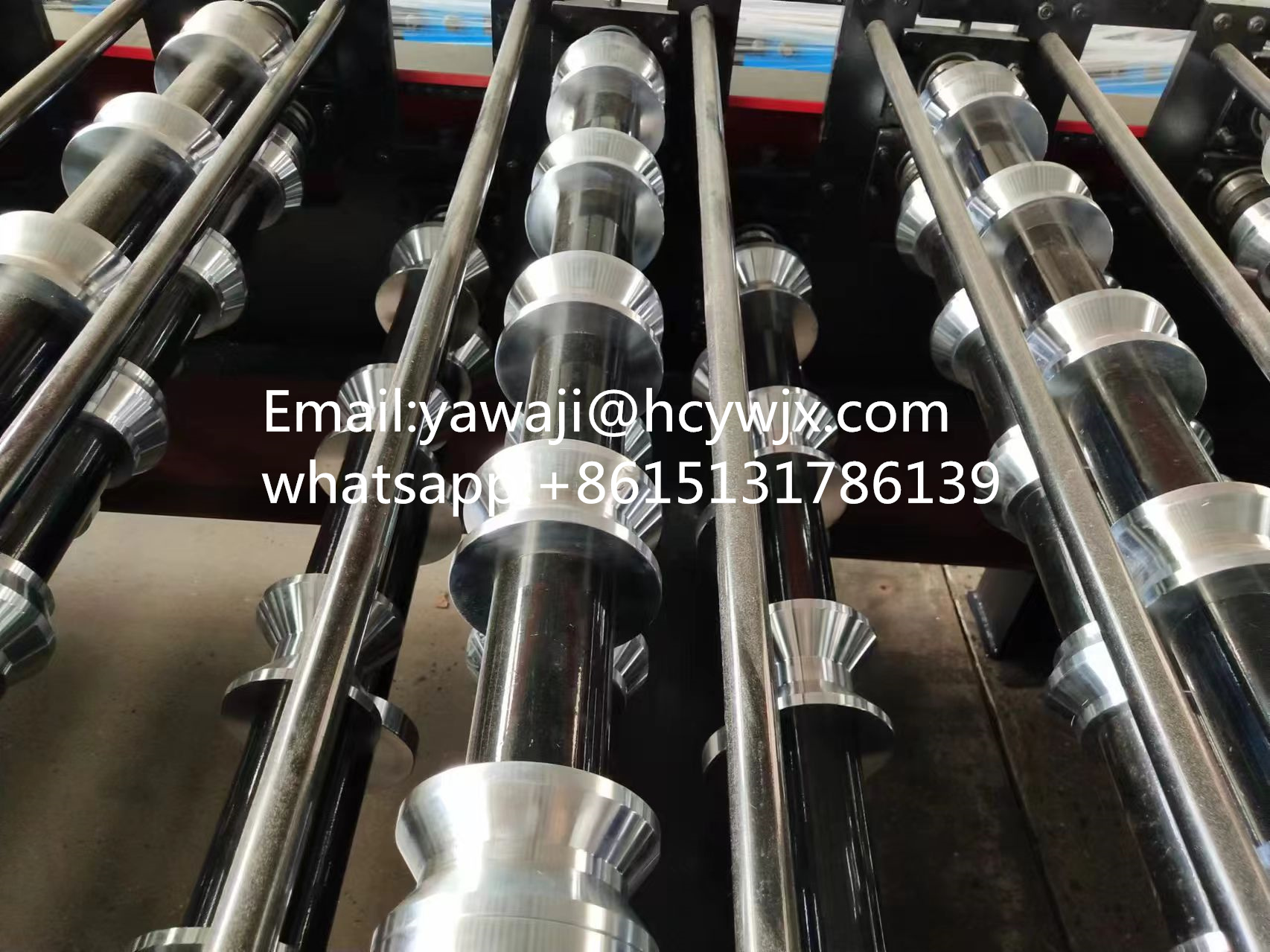

Shaft & Roller

The shaft transmits the power of the motor and other power sources to various working parts, such as rollers, gears, etc. The rotation of the shaft drives the rollers connected to it to rotate, so that the plate is gradually advanced between the rollers and the profiling process is completed, realizing the continuous production of glazed tiles.

Pressing Section & Cutter

The material of blade is CR12.
With high strength, better hardenability and good wear resistance.

The fast and accurate cutting function enables the production of glazed tiles to be continuous and automated, eliminating the need for tedious manual measurement and cutting operations, greatly improving production efficiency and reducing production time and labor costs.
