    Roof Wall Panel Double Deck Roll Forming Machine

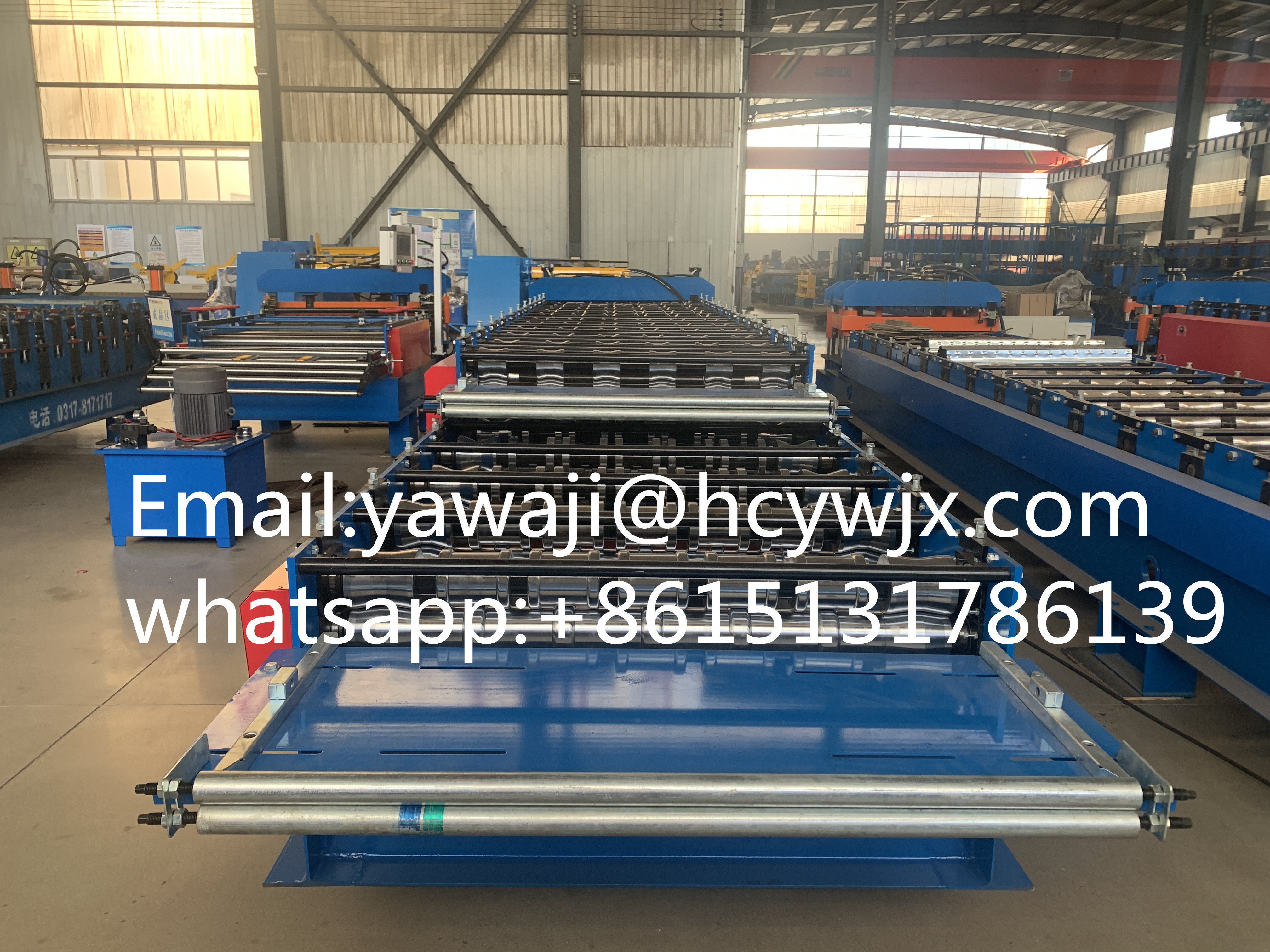

    Product Description
    Equipped with advanced CNC systems and precision-processed molds, the dimensional accuracy of the color steel tiles can be accurately controlled, so that the wave height, spacing and overall flatness of the tiles meet high standards. This ensures the tight splicing of the color steel tiles during installation and improves the overall aesthetics and waterproof performance of the building.


    Main Technical Parameters

    MaterialTypePPGI/GI
    Thickness0.3-0.6mm
    Width1200mm
    Roller Stations12Stations
    Roller & Shaft Material45# Steel Quenching and Plating
    Diameter of ShaftΦ70mm
    Cutter MaterialCR12
    Drive TypeChain Drive
    Speed15m/min
    Total Power5.5+5.5KW
    Voltage380V 50Hz 3Phases

    Working Flow
    Decoiling → Material Feeding → Roll Forming → Cutting → Collecting


    Component & Technical Parameters


    This part is used to support Coil.
    And make the coil in a rotary way.
    Bearing capacity: 5T
    Inner diameter: 470-530mm

    It automatically adjusts the unwinding speed according to the speed and demand of subsequent processes, achieving automation and continuity of the entire production process.


    Hydraulic Pump Station


    When the equipment encounters abnormal resistance or excessive pressure, it can automatically adjust the pressure of the hydraulic system to avoid damage to the equipment due to overload, thereby improving the reliability and stability of the floor deck forming machine.

    Touch Screen Control Cabinet

    The control cabinet has two modes, automatic and manual modes.
    The unit length of the targeted sheet and quantity can be set in the touchscreen.
    The system is simple and easy to operate.

    The control cabinet can be interconnected with other equipment, such as working with the uncoiler, hydraulic pump station, etc., to ensure the efficient and stable operation of the entire floor decking forming machine system, providing a strong guarantee for the production of high-quality floor decking.

    Feeding Table & Pre-Cutter

    When there is a brief speed fluctuation in the upstream uncoiler or downstream forming equipment, the feed table can maintain the continuity of material transportation through its own buffer mechanism to avoid production stagnation or plate damage caused by speed differences.


    Shaft & Roller


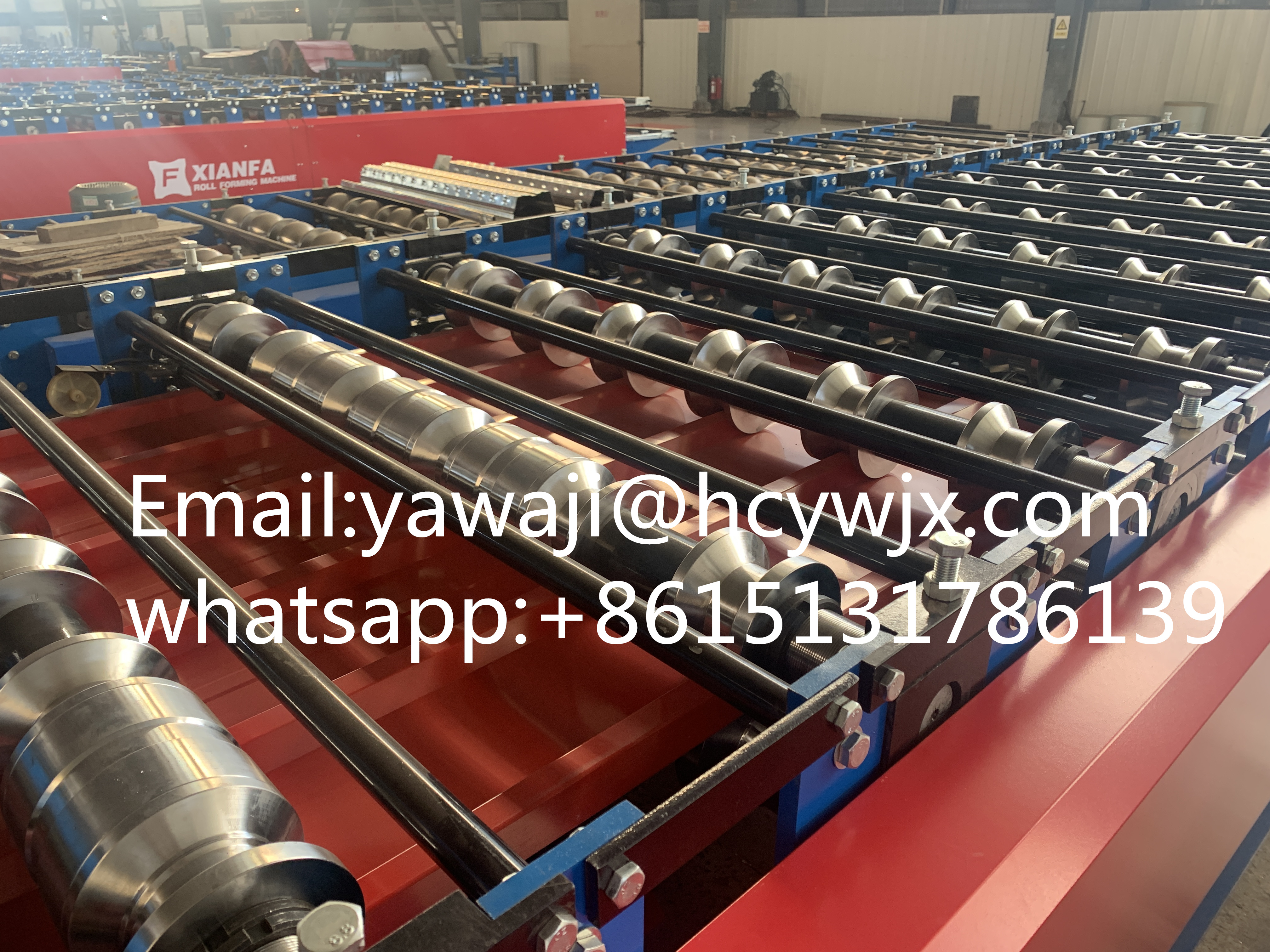

    Entering the forming stage, a series of forming rollers of different shapes and specifications gradually cold-bend the plate in sequence. They accurately shape specific waveforms, rib heights and contours according to the design requirements of the floor deck. The accuracy and surface quality of the rollers directly determine the final forming accuracy and surface quality of the floor deck.​


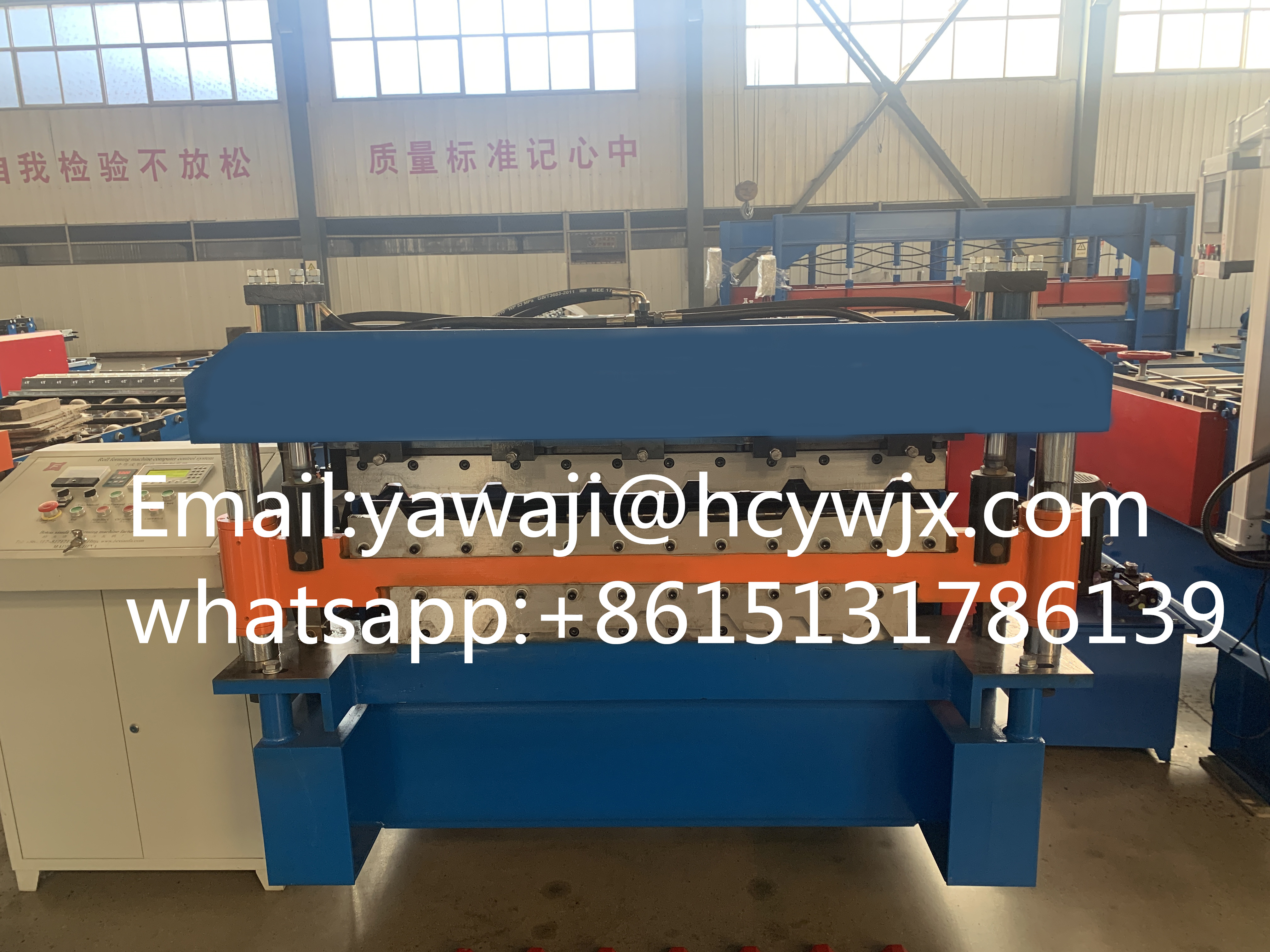

    Pressing Section & Cutter


    The material of blade is CR12.
    With high strength, better hardenability and good wear resistance.


    The automated production process is completed in one go from plate loading to finished product output, with a fast production speed, which can meet the large demand for color steel tiles for construction projects of different sizes. Compared with traditional production methods, it greatly shortens the production cycle and improves production efficiency.
