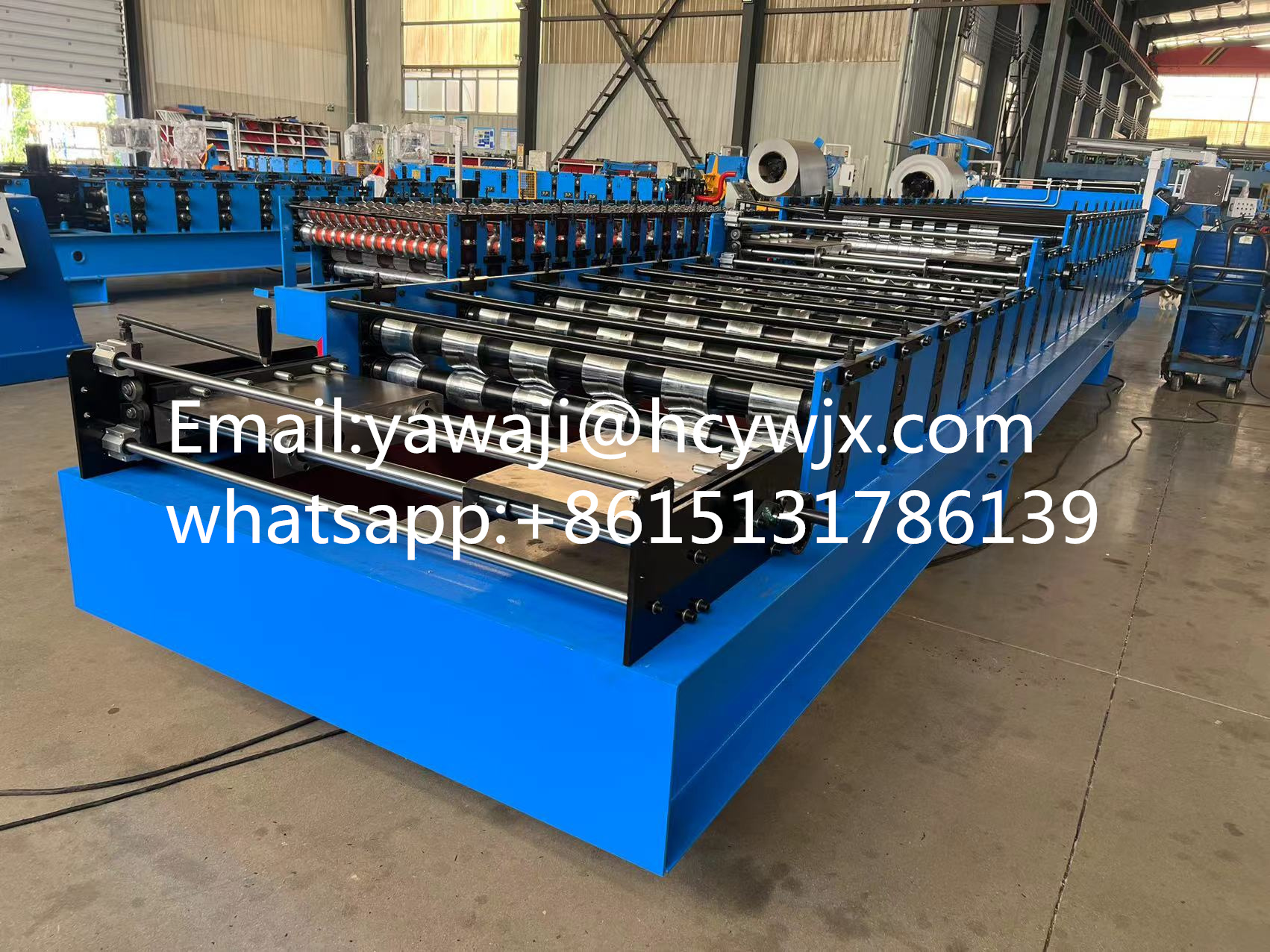

Product Description

The equipment has a high degree of automation. From sheet feeding, roller forming to cutting, the whole process can be carried out continuously and stably, reducing the time loss caused by equipment start-up and stop, and further improving production efficiency.

Main Technical Parameters

Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm

The uncoiler plays an indispensable role in the production process of the double-layer trapezoidal tile pressing machine. In the production process of color steel tiles, metal sheets are usually supplied in the form of rolls, and the primary function of the uncoiler is to smoothly and steadily unfold these tightly wound metal sheets.

Hydraulic Pump Station


When the equipment encounters abnormal resistance or excessive pressure, it can automatically adjust the pressure of the hydraulic system to avoid damage to the equipment due to overload, thereby improving the reliability and stability of the floor deck forming machine.

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.

The control cabinet can be interconnected with other equipment, such as working with the uncoiler, hydraulic pump station, etc., to ensure the efficient and stable operation of the entire floor decking forming machine system, providing a strong guarantee for the production of high-quality floor decking.

Feeding Table & Pre-Cutter

The feeding table also has a certain buffering function. When the upstream uncoiler or downstream forming equipment has a short speed fluctuation, the feeding table can maintain the continuity of material transportation through its own buffering mechanism to avoid production stagnation or plate damage caused by speed differences.

Shaft & Roller

Entering the forming stage, a series of forming rollers of different shapes and specifications gradually cold-bend the plate in sequence. They accurately shape specific waveforms, rib heights and contours according to the design requirements of the floor deck.

Like skilled craftsmen, they precisely shape and contour the specific shapes and contours required for glazed tiles.

Pressing Section & Cutter

The material of blade is CR12.
With high strength, better hardenability and good wear resistance.

After the metal sheet has gone through the uncoiling, leveling and precise forming process, the cutter begins to play its core function. It can accurately cut the continuously formed steel sheet according to the preset length.
