    Professional High Speed Double Deck Roll Forming Machine

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC15-37-1250
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 20set per month
    Delivery Time : 20-30 work days
    • Product Details
    • Company Profile

    Professional High Speed Double Deck Roll Forming Machine

    Product Description
    Different from the single-layer tile pressing machine, the double-layer trapezoidal tile pressing machine can produce two layers of trapezoidal tiles at the same time, which greatly improves the production efficiency and can produce double the products in the same time, greatly meeting the large demand for tiles in large-scale construction projects and shortening the construction period

    Main Technical Parameters

    MaterialTypePPGI/GI
    Thickness0.3-0.6mm
    Width1250mm
    Roller Stations12/15Stations
    Roller & Shaft Material45# Steel Quenching and Plating
    Diameter of ShaftΦ70mm
    Cutter MaterialCR12
    Drive TypeChain Drive
    Speed15m/min
    Total Power5.5+5.5KW
    Voltage380V 50Hz 3Phases

    Working Flow
    Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

    Component & Technical Parameters


    This part is used to support Coil.
    And make the coil in a rotary way.
    Bearing capacity: 5T
    Inner diameter: 470-530mm

    In the production process of floor decking, metal sheets are usually supplied in the form of coils. The primary function of the uncoiler is to smoothly and steadily unwind these tightly wound metal sheets.

    Hydraulic Pump Station

    When the equipment encounters abnormal resistance or excessive pressure, it can automatically adjust the pressure of the hydraulic system to avoid damage to the equipment due to overload, thereby improving the reliability and stability of the floor deck forming machine.
    Touch Screen Control Cabinet

    The control cabinet has two modes, automatic and manual modes.
    The unit length of the targeted sheet and quantity can be set in the touchscreen.
    The system is simple and easy to operate.


    The control cabinet can be interconnected with other equipment, such as working with the uncoiler, hydraulic pump station, etc., to ensure the efficient and stable operation of the entire floor decking forming machine system, providing a strong guarantee for the production of high-quality floor decking.

    Feeding Table & Pre-Cutter

    The feed table provides operators with a convenient loading platform, allowing them to easily place metal sheets on the conveyor rack, reducing the difficulty of manual handling and adjustment and improving loading efficiency.

    Shaft & Roller


    The shaft provides a positioning reference for other components, ensuring the relative position accuracy between the components. For example, when installing transmission components such as gears and sprockets, the position of the shaft determines the installation position of these components, ensuring that the meshing and transmission relationship between them is accurate and the equipment runs smoothly.​

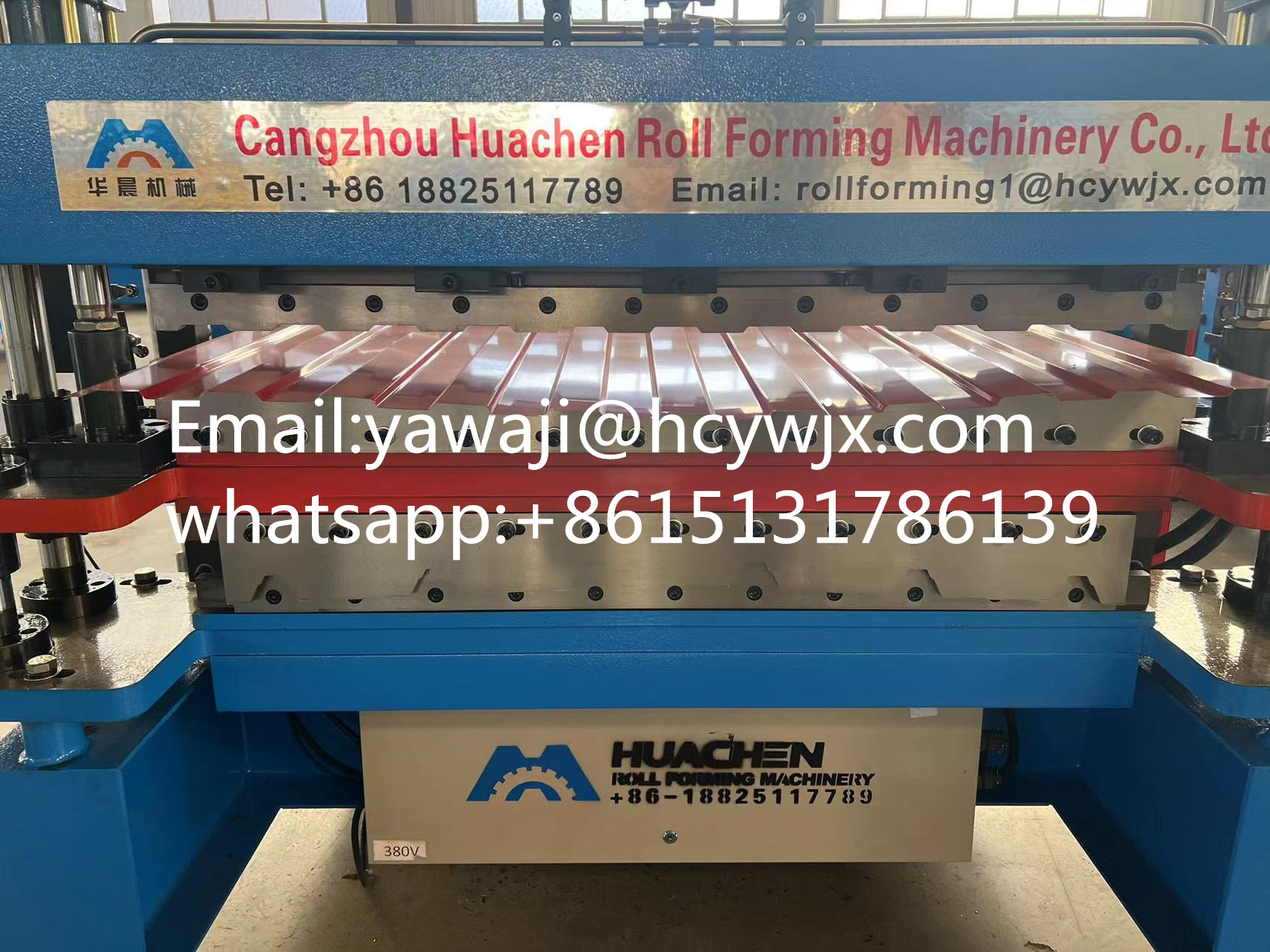

    Pressing Section & Cutter

    The material of blade is CR12.
    With high strength, better hardenability and good wear resistance.

    Through reasonable cutting technology and precise cutting control, the cutter can minimize the stress impact on the glazed tile blank during the cutting process, prevent the tiles from deformation, warping and other problems after cutting, ensure the flatness and shape accuracy of the tiles, and facilitate subsequent installation and use.
