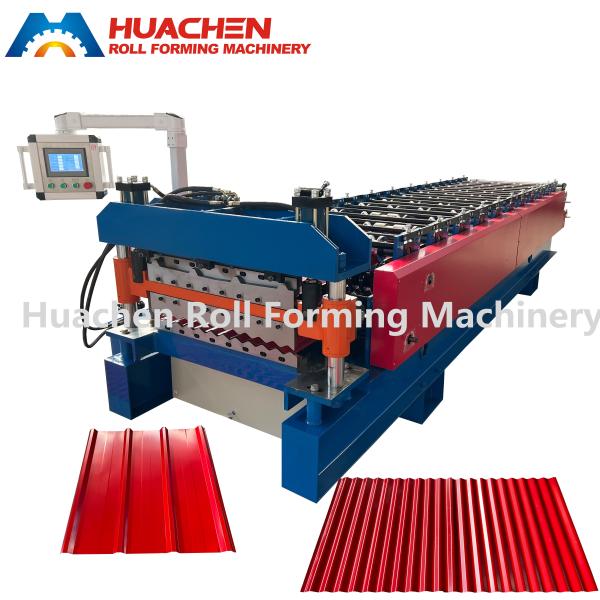

    Double Layer Roof Sheet Roll Forming Machine

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC26/25-1220
    Certification : CE
    Payment Terms : L/C,T/T
    Supply Ability : 20set per month
    Delivery Time : 20-30 work days
    • Product Details
    • Company Profile

    Double Layer Roof Sheet Roll Forming Machine

    Main Technical Parameters

    MaterialTypePPGI/GI
    Thickness0.3-0.6mm
    Width1220mm
    Roller Stations11+12Stations

    Roller & Shaft Material

    45# Steel Quenching and Plating
    Diameter of ShaftΦ70mm
    Cutter MaterialCR12
    Drive TypeChain Drive
    Speed20m/min
    Total Power5.5+5.5KW
    Voltage380V 50Hz 3Phases

    Working Flow
    Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

    Component & Technical Parameters
    Decoiler
    This part is used to support Coil.
    And make the coil in a rotary way.
    Bearing capacity: 5T
    Inner diameter: 470-530mm
    (adjustable according to demand.)
    In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

    Feeding Table & Pre-Cutter

    Guide the coil come into the correct position and passed to the roll forming machine.
    Also including a pre-cut device, it is convenient to pre-cut the coil when want to using other color or thickness coils.


    Hydraulic Pump Station
    It use 46# hydraulic oil.
    The purpose of this pumping station is to
    Supply the power to the cutter, so that the cutter can work.

    Shaft & Roller
    Material is 45# Steel with Chrome Treatment.
    The processed rollers are smooth, hard and will not rust.
    Will not leave any scratches on the sheet when working.

    Touch Screen Control Cabinet
    The control cabinet has two modes, automatic and manual. It can be adjusted according to operation requirement.
    The unit length of the targeted sheet can be set in the control cabinet.
    The system is simple and easy to operate.

    Cutter
    The material of blade is CR12.
    With high strength, better hardenability and good wear resistance.
