Product Description

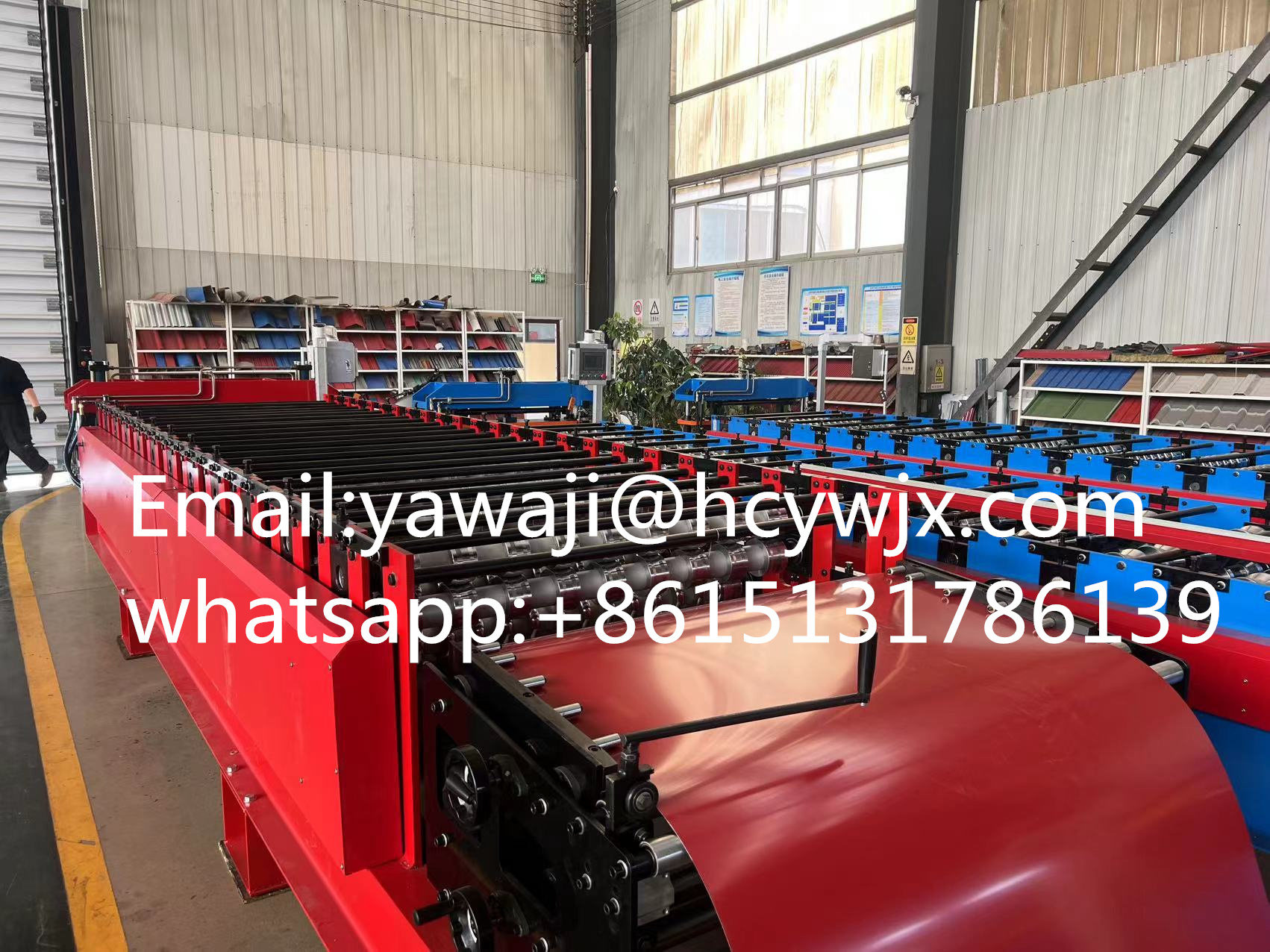

The double-layer trapezoidal tile pressing machine has two
independent molding systems, one on the upper and one on the lower
layer. It can press two plates of different or same specifications
at the same time. Compared with the single-layer tile pressing
machine, it can produce twice as many tiles in the same time,
greatly improving production efficiency, and is especially suitable
for large-scale and high-efficiency production needs.
For enterprises that need to produce tiles of various
specifications, the double-layer structure can be used for
production on one layer while preparing for mold replacement or
debugging on the other layer, thereby reducing downtime caused by
mold replacement and further improving equipment utilization and
production efficiency.
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.3-0.6mm |
| Width | 1220mm |
| Roller Stations | 11/12Stations |
| Roller & Shaft Material | 45# Steel Quenching and Plating |
| Diameter of Shaft | Φ70mm |
| Cutter Material | CR12 |
| Drive Type | Chain Drive |
| Speed | 15m/min |
| Total Power | 5.5+5.5KW |
| Voltage | 380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
Uncoilers play an indispensable role in the production process of
tile presses. In the production process of tile presses, metal
sheets are usually supplied in the form of coils, and the primary
function of the uncoiler is to smoothly and steadily unwind these
tightly wound metal sheets.
Hydraulic Pump Station
When the equipment encounters abnormal resistance or excessive
pressure, it can automatically adjust the pressure of the hydraulic
system to avoid damage to the equipment due to overload, thereby
improving the reliability and stability of the floor deck forming
machine.
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Feeding Table & Pre-Cutter
The feed table can be used as a temporary buffer and storage area,
and can play a certain buffering role when the sheet supply speed
is not completely consistent with the production speed of the tile
press.
Shaft & Roller
The wheels of the tile press usually refer to the forming rollers,
which are the direct acting parts for processing the plate into
trapezoidal tiles. The surface shape of these rollers is precisely
processed according to the design requirements of the trapezoidal
tiles. Through the gradual rolling of multiple rollers, the flat
plate is gradually bent into the shape of a trapezoidal tile.
Pressing Section & Cutter
After the continuous sheet is pressed and formed, it is divided
into individual tile units to facilitate subsequent transportation,
stacking and installation.
It can produce two layers of trapezoidal corrugated boards at the
same time and form them in one step, which greatly improves
production efficiency and saves production time and labor costs.
Compared with the traditional method of producing single-layer
corrugated boards and then stacking them, it reduces the
intermediate links and makes the production process more concise
and efficient.
