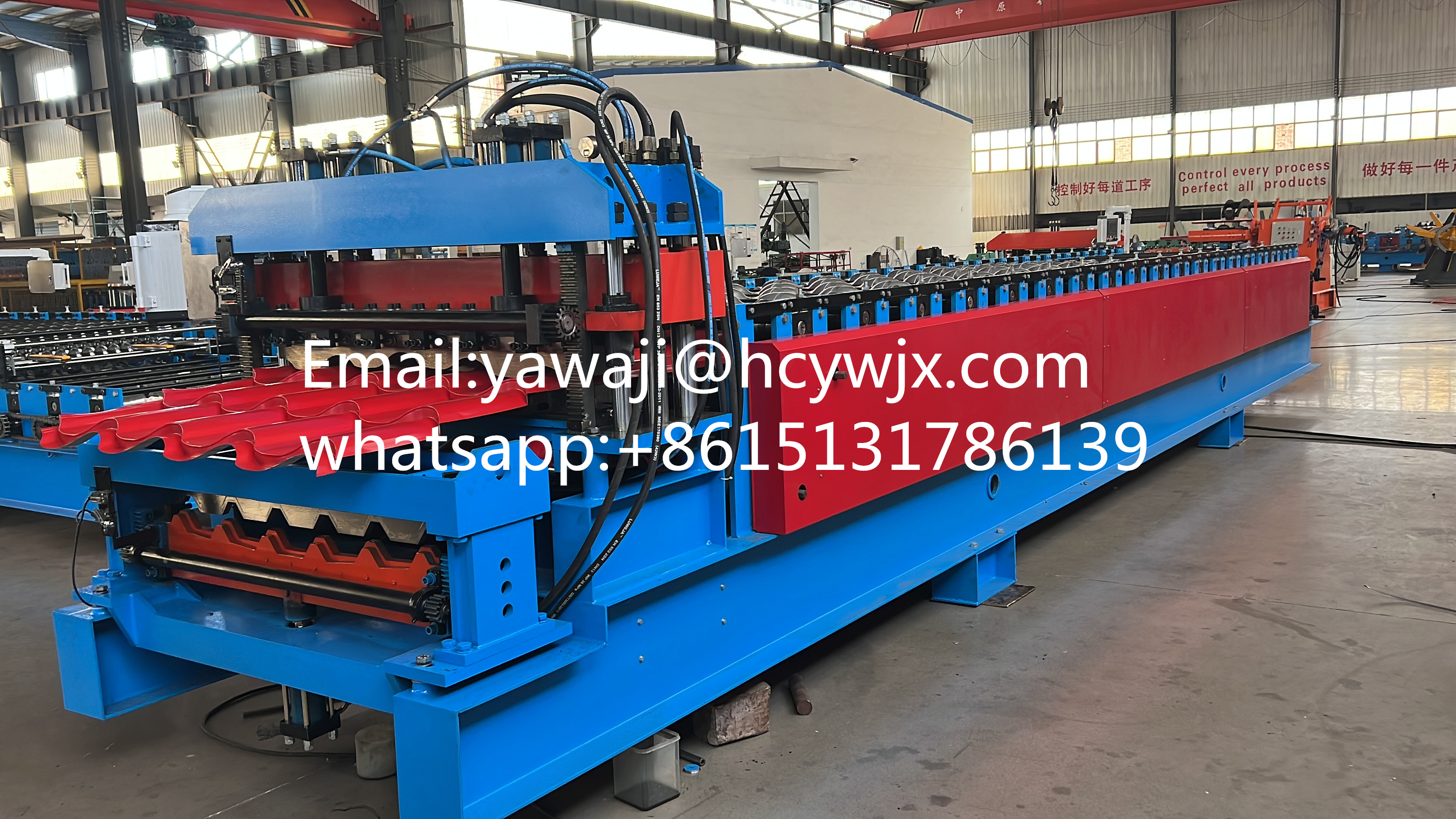

    Roof Wall Panel Double Deck Roll Forming Machine

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC42-43-1250
    Certification : CE
    Payment Terms : L/C,T/T
    Supply Ability : 20set per month
    Delivery Time : 20-30 work days
    • Product Details
    • Company Profile

    Roof Wall Panel Double Deck Roll Forming Machine

    Product Description

    Equipped with advanced CNC operating system, the operation interface is simple and intuitive, and workers can easily achieve precise control of the tile press. Parameters such as plate thickness, corrugation spacing, and forming speed can be flexibly adjusted, and the length accuracy is controlled within ±1mm, which greatly improves the flexibility of production and the stability of product quality.
    The mold is made of special alloy steel, and after multiple fine processing and surface hardening treatment, the wear resistance is improved by more than 50% compared with ordinary molds, which effectively reduces the frequency of mold replacement and extends the service life of the equipment, saving a lot of mold replacement costs and maintenance time for enterprises

    Main Technical Parameters

    Material Type PPGI/GI
    Thickness 0.3-0.6mm
    Width 1250mm
    Roller Stations 18/19Stations
    Roller & Shaft Material 45# Steel Quenching and Plating
    Diameter of Shaft Φ70mm
    Cutter Material CR12
    Drive Type Chain Drive
    Speed 15m/min
    Total Power 5.5+5.5KW
    Voltage 380V 50Hz 3Phases

    Working Flow
    Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

    Component & Technical Parameters

    Roof Wall Panel Double Deck Roll Forming Machine


    This part is used to support Coil.
    And make the coil in a rotary way.
    Bearing capacity: 5T
    Inner diameter: 470-530mm

    Uncoilers play an indispensable role in the production process of tile presses. In the production process of tile presses, metal sheets are usually supplied in the form of coils, and the primary function of the uncoiler is to smoothly and steadily unwind these tightly wound metal sheets.

    Hydraulic Pump Station
    Roof Wall Panel Double Deck Roll Forming Machine
    When the equipment encounters abnormal resistance or excessive pressure, it can automatically adjust the pressure of the hydraulic system to avoid damage to the equipment due to overload, thereby improving the reliability and stability of the floor deck forming machine.

    Touch Screen Control Cabinet

    Roof Wall Panel Double Deck Roll Forming Machine

    The control cabinet has two modes, automatic and manual modes.
    The unit length of the targeted sheet and quantity can be set in the touchscreen.
    The system is simple and easy to operate.


    Feeding Table & Pre-Cutter

    Roof Wall Panel Double Deck Roll Forming Machine

    The feed table is generally equipped with positioning devices, such as baffles or positioning pins, which are used to accurately position the plates to ensure that the plates are in the correct position and direction when entering the tile press


    Pressing Section & Cutter

    Roof Wall Panel Double Deck Roll Forming Machine

    Fast and efficient cutting action can reduce the production time of a single tile, thereby improving the production efficiency of the entire tile press. The cutting speed of the cutter can usually be adjusted according to the operating speed of the tile press and the material of the board to achieve the best production rhythm.
