    PBR Panel And AG Panel Double-Layer Roll Forming Machine For Sale

    Product Description

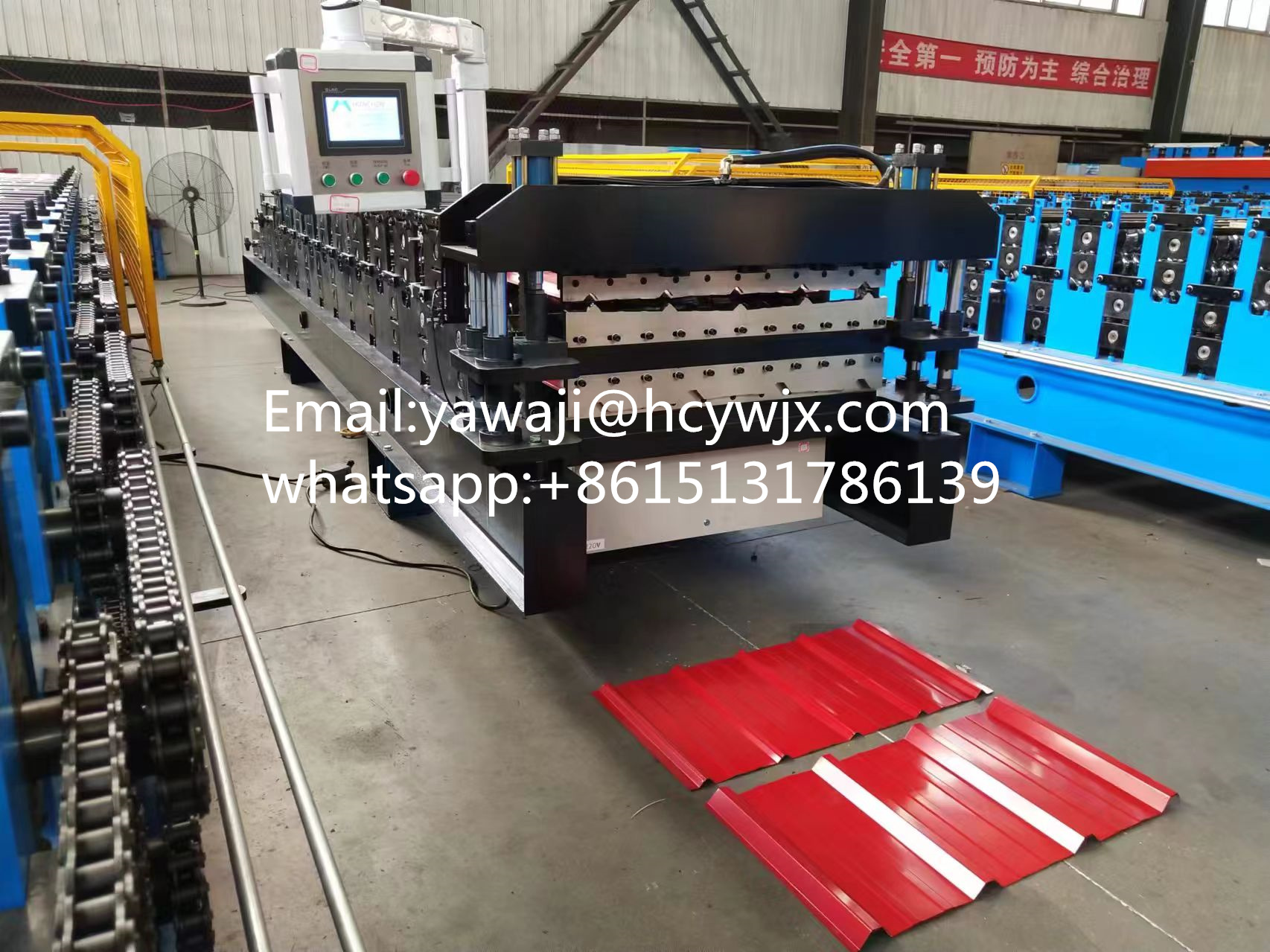

    PBR Panel And AG Panel Double-Layer Roll Forming Machine For Sale​

    The PBR panel AG panel double-layer roll forming machine is a specialized industrial machine designed for the efficient production of roofing and wall panels. This machine combines two different profiles into a single unit, allowing manufacturers to produce multiple panel types without the need for multiple machines. Here’s an overview of its features and benefits:

    Key Features

    1. Double-Layer Design:

      • Capable of producing two distinct panel profiles, such as PBR and AG panels, in one continuous process.
      • Reduces production time and costs by minimizing equipment requirements.
    2. High Efficiency:

      • Utilizes advanced technology to ensure high-speed production without compromising quality.
      • Features an automatic control system for streamlined operations.
    3. Durability:

      • Constructed with robust materials to withstand heavy usage and environmental factors.
      • Ensures longevity and reliability in production.
    4. Versatility:

      • Suitable for various applications, including industrial buildings, warehouses, and agricultural facilities.
      • Can be customized to produce different panel sizes and thicknesses.
    5. User-Friendly Interface:

      • Equipped with an intuitive control panel for easy operation and monitoring.
      • Provides real-time feedback and data for efficient management.
    6. Minimal Waste:

      • Designed to optimize material usage, reducing scrap and waste during production.
      • Enhances overall sustainability of the manufacturing process.

    Benefits

    • Cost-Effective: By combining two production lines into one, manufacturers can save on equipment and operational costs.
    • Space-Saving: Compact design is ideal for facilities with limited space.
    • Fast Return on Investment: High production efficiency and reduced operating costs lead to quicker ROI for businesses.
    • Quality Assurance: Produces high-quality panels with consistent dimensions and finishes.
    • Product parameter

      MaterialTypePPGI/GI/Aluminum
      Thickness0.3-0.6mm
      Width

      Corrugated: 1220mm

      Trapezoid: 1220mm

      Roller Stations10/12Stations
      Roller & Shaft Material45# Steel with Chrome Treatment
      Diameter of ShaftΦ70mm
      Cutter MaterialCR12
      Speed15m/min
      Total Power4+4KW
      Voltage220V 60Hz 3Phases

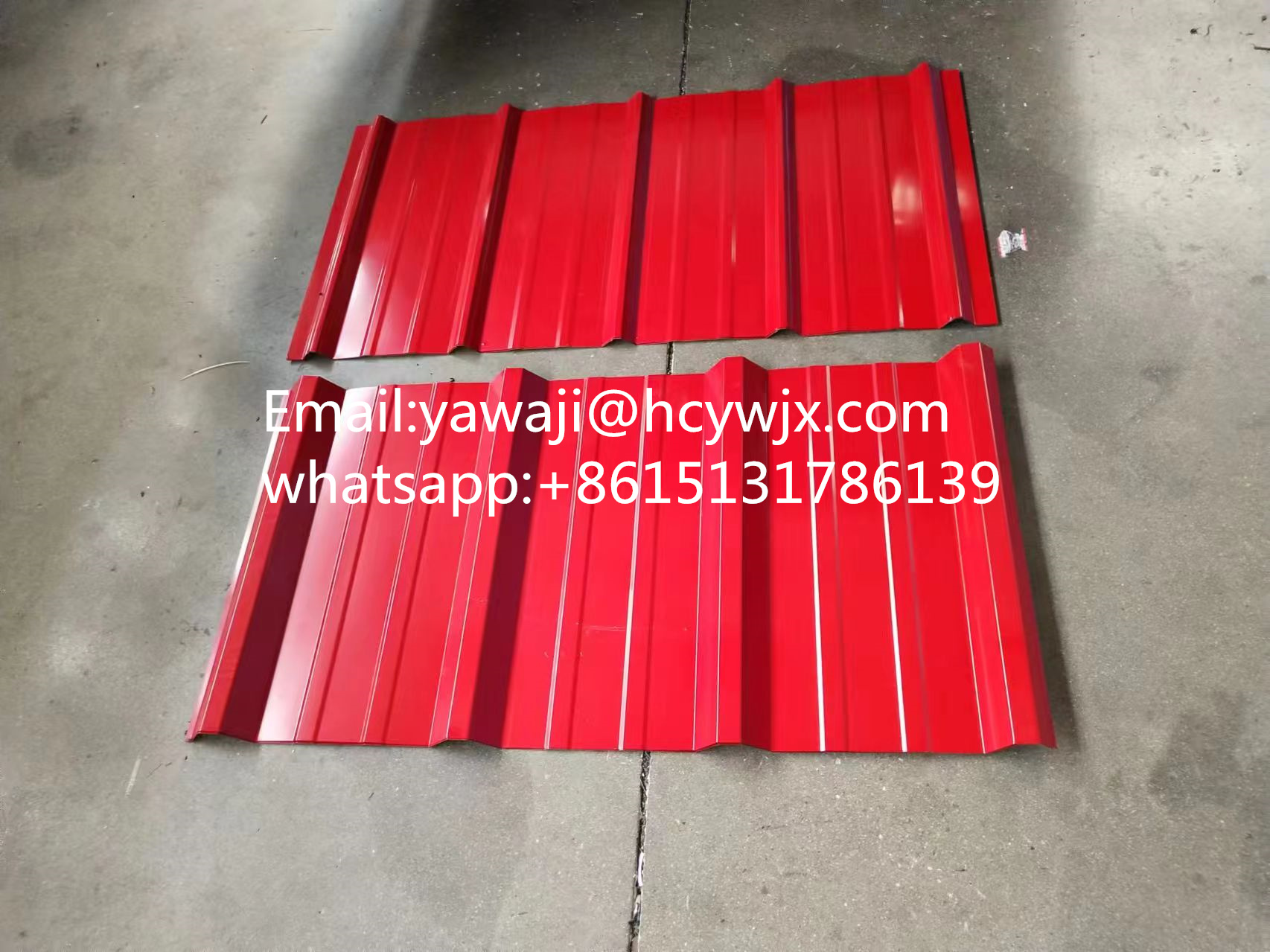

    Finished products showing

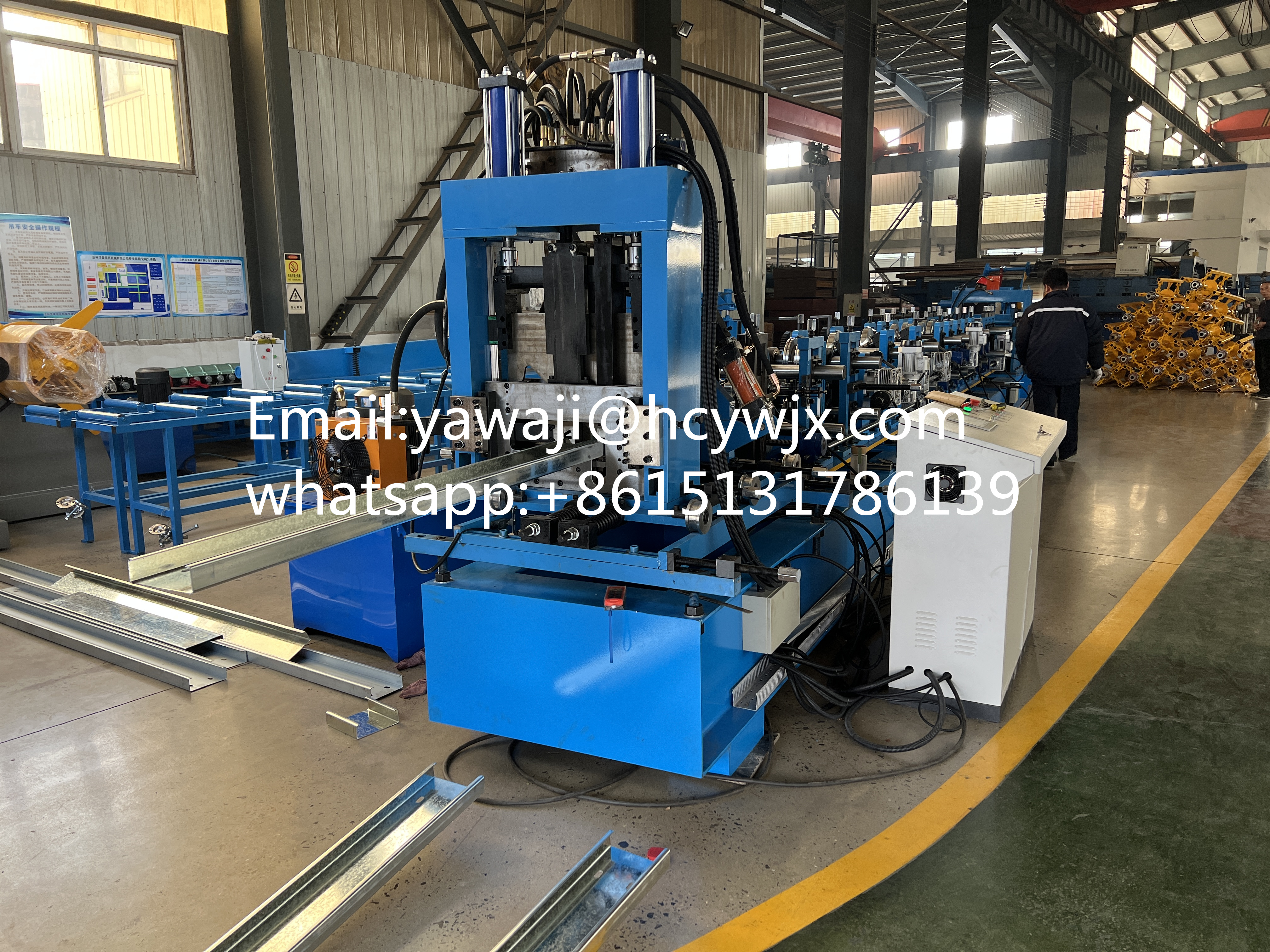

    Workshop scene
    We can also make the following machines
    NO.NAME
    1Single layer roll forming machine
    2Duoble layer roll forming machine
    3Trapezoidal roll forming machine
    4Glazed tile roll forming machine
    5Currugated roll forming machine
    6Floor deck roll forming machine
    7Roll shutter door forming machine
    8C/Z/Uprofile steel forming machine
    9Ridge cap roll forming machine
    10Downspout forming machine
    11Keel roll forming machine
    12Heat retaining sandwich panel
    13Highway guardrail roll forming machine
    14Carrige board roll forming machine
    15High-frequency pipe welder
    16Hydraulic full-automatic decoiler and accessory equipments
    17Color steel roll forming machine
    18Joint-hidden type forming machine
    19Colorfull stone-coated steel
    20No-girder arched roll forming machine
    21Standing seam arching machine
    22Hydraulic crimping curving machine
    23Steel coil slitting roll forming machine
    24Windshield dust-controlling board producing line
    25Some others can be made on request

    Group photo of some customers

    Why book with us?

    1.We have 20 years of experience in production and sales of tile presses

    2.We know the commonly used tile types in each region and can recommend them to customers

    3.We have an excellent design and production team that can design and manufacture according to customer needs.

    4.We have our own company and welcome customers at any time

    5.We can help you contact the shipping company and we can also deliver to your door if you need.
