    Trapezoidal Double Layer Tile Roll Forming Machine For Manufacturing Metal Tile Profiles

    Product Description
    Trapezoidal double-layer tile forming machine is a mechanical equipment specially used for producing trapezoidal double-layer tiles. Its main function is to process metal plates (such as color steel plates, aluminum plates, etc.) through a series of forming rollers, and gradually process the plates into a tile shape with a trapezoidal cross-section and a double-layer structure. This kind of tile is usually used for decoration and protection of building roofs and walls.


    Working Flow

    Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

    Main Technical Parameters


    MaterialTypePPGI/GI
    Thickness0.3-0.6mm
    Width1200/1220mm
    Roller Stations12+15Stations
    Roller & Shaft Material45# Steel Quenching and Plating
    Diameter of ShaftΦ70mm
    Cutter MaterialCR12
    Drive TypeChain Drive
    Speed15m/min
    Total Power5.5+5.5KW
    Voltage380V 50Hz 3Phases


    Component & Technical Parameters

    This part is used to support Coil.And make the coil in a rotary way.

    Bearing capacity: 3TInner diameter: 470-530mm.(adjustable according to demand)

    Shaft & Roller

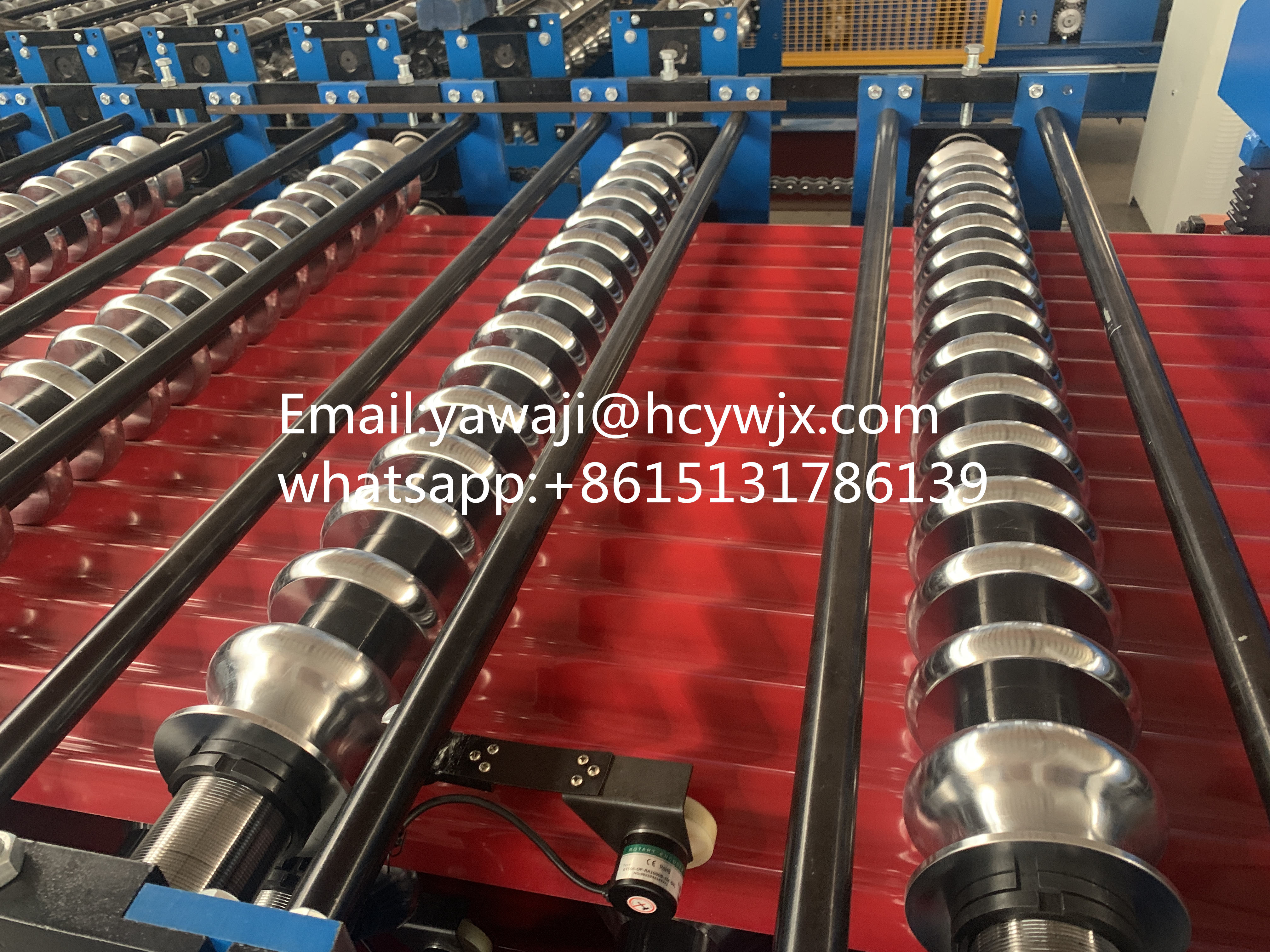

    Roll Forming Machine: The heart of the system, this machine shapes the metal into the desired profile or slat design. Roll forming involves passing the metal through a series of rollers, each with a specific profile, to gradually shape the material.

    Cutter

    The material of blade is CR12.

    With high strength, better hardenability and good wear resistance.

    Hydraulic Pump Station

    The purpose of this pump station is to drive the cutter to start cutting works.

    The hydraulic tank use 46# hydraulic oil.

    Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.

    Control Cabinet

    The control cabinet has two modes, automatic and manual modes.

    The unit length of the targeted sheet and quantity can be set in the touchscreen.

    The system is simple and easy to operate.

    Why Book With Us?

    1.We have 20 years of experience in production and sales of tile presses
    2.We know the commonly used tile types in each region and can recommend them to customers
    3.We have an excellent design and production team that can design and manufacture according to customer needs.
    4.We have our own company and welcome customers at any time
    5.We can help you contact the shipping company and we can also deliver to your door if you need.
