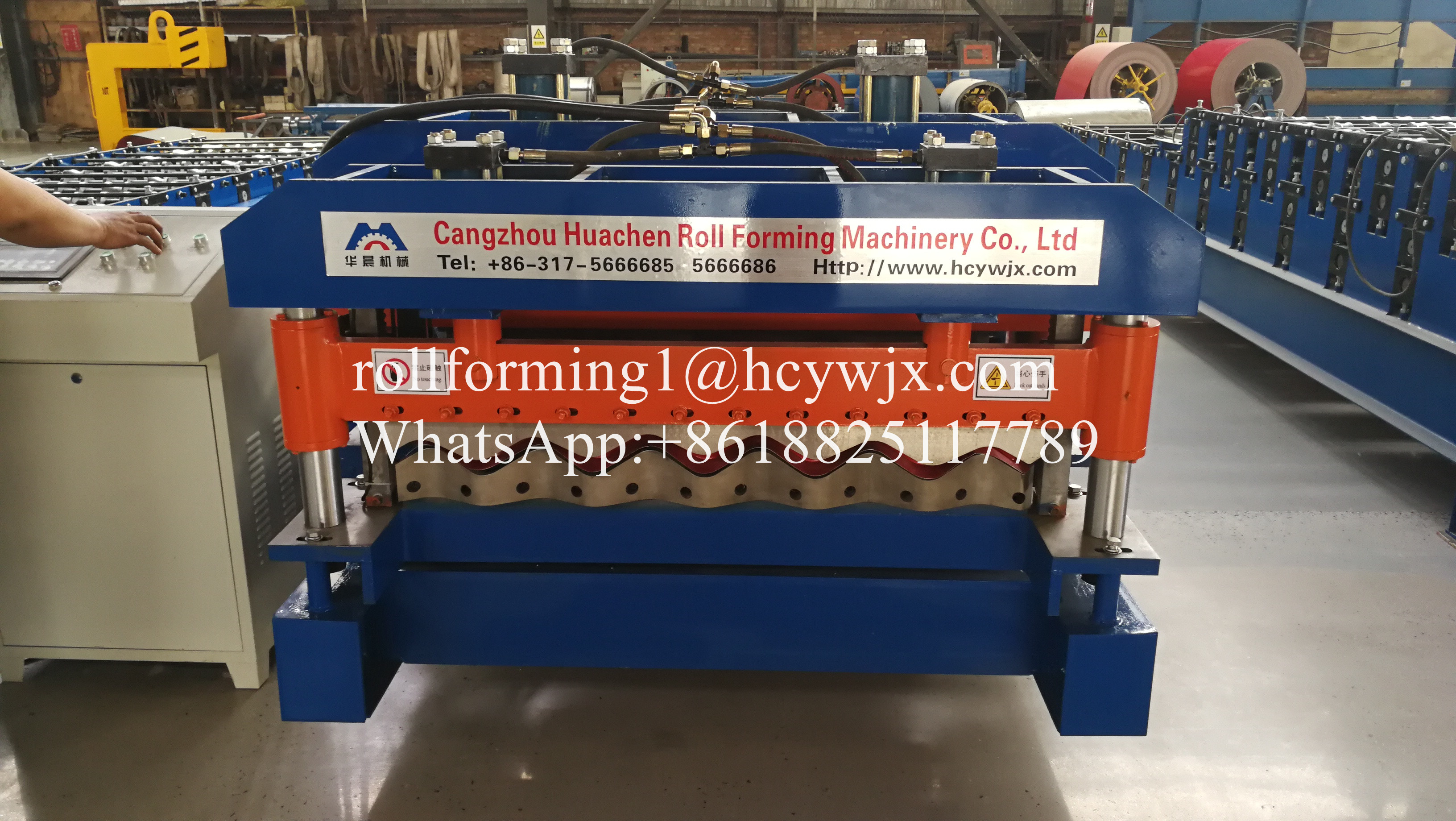

    Efficient Popular Glazed Tile Roll Former Glazed Tile Roll Forming Machine

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC40-200-1000
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 20set per month
    Delivery Time : 20-30 work days
    • Product Details
    • Company Profile

    Efficient Popular Glazed Tile Roll Former Glazed Tile Roll Forming Machine

    Product Description

    It has a high degree of automation and can operate continuously. Compared with traditional manual or semi-manual production methods, it greatly improves the production efficiency of glazed tiles. For example, some advanced models can produce a large number of glazed tiles per hour, which can meet the needs of large-scale projects.​.


    Working Flow

    Decoiling → Material Feeding → Roll Forming → Cutting → Collecting


    Main Technical Parameters


    MaterialTypePPGI/GI
    Thickness0.3-0.6mm
    Width1220mm
    Roller Stations18Stations
    Roller & Shaft Material45# Steel Quenching and Plating
    Diameter of ShaftΦ70mm
    Cutter MaterialCR12
    Drive TypeChain Drive
    Speed2-4m/min
    Total Power5.5+5.5KW
    Voltage380V 50Hz 3Phases

    5T Manual Decoiler

    This part is used to support Coil.

    And make the coil in a rotary way.

    Bearing capacity: 5T

    Inner diameter: 470-530mm

    (adjustable according to demand.)

    In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.


    Shaft & Roller


    Material is 45# Steel Quenching and Plating.

    The processed rollers are smooth, hard and will not rust.

    Will not leave any scratches on the sheet when working.


    Pressing Section & Cutter

    The material of blade is CR12.

    With high strength, better hardenability and good wear resistance.

    The hydraulic cylinder drives the cutter to move up and down. When the glazed tile is formed to the set length, the cutter moves to cut the colored steel tile to obtain the finished glazed tile of the required length.


    Hydraulic Pump Station


    The purpose of this pump station is to drive the cutter to start cutting works.

    The hydraulic tank use 46# hydraulic oil.

    Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.

    Solenoid valve brand: Huade


    Touch Screen Control Cabinet

    The control cabinet has two modes, automatic and manual modes.

    The unit length of the targeted sheet and quantity can be set in the touchscreen.

    The system is simple and easy to operate.

    Electrical Component Brand:

    1. VFD: Delta

    2. Circuit breaker: Delixi

    3. Contactor: Delixi

    4. Relay: Xinling

    5. PLC: Delta

    6. Transformer: Delixi


    The equipment has a reasonable structural design, and the disassembly, assembly and maintenance of each component are relatively convenient. In addition, common parts are easily available on the market, which reduces maintenance costs and repair difficulties, and reduces equipment downtime.
