Product Description

During the sheet forming process, the length of the trapezoidal tile needs to be precisely controlled. Usually, the double-layer trapezoidal tile press adopts a length measuring device to achieve this function. Common length measuring devices include encoders, roller counters, etc. The encoder is connected to the transmission system and can accurately measure the conveying length of the sheet. When the sheet is conveyed to the set length, the encoder will send a signal to the control system. The roller counter measures the length of the sheet by contacting the surface of the sheet and rotating as the sheet moves, and by counting the number of revolutions of the roller.

Main Technical Parameters

Working Flow

Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

This part is used to support Coil.

And make the coil in a rotary way.

Bearing capacity: 5T

Inner diameter: 470-530mm

(adjustable according to demand.)

In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

Hydraulic Pump Station

The purpose of this pump station is to drive the cutter to start cutting works.

The hydraulic tank use 46# hydraulic oil.

Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.

Solenoid valve brand: Huade

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual modes.

The unit length of the targeted sheet and quantity can be set in the touchscreen.

The system is simple and easy to operate.

Electrical Component Brand:

1. VFD: Delta

2. Circuit breaker: Delixi

3. Contactor: Delixi

4. Relay: Xinling

5. PLC: Delta

6. Transformer: Delixi

Feeding Table & Pre-Cutter

Guide the coil come into the correct position and going to the roll forming part.

Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.

Shaft & Roller

Material is 45# Steel Quenching and Plating.

The processed rollers are smooth, hard and will not rust.

Will not leave any scratches on the sheet when working.

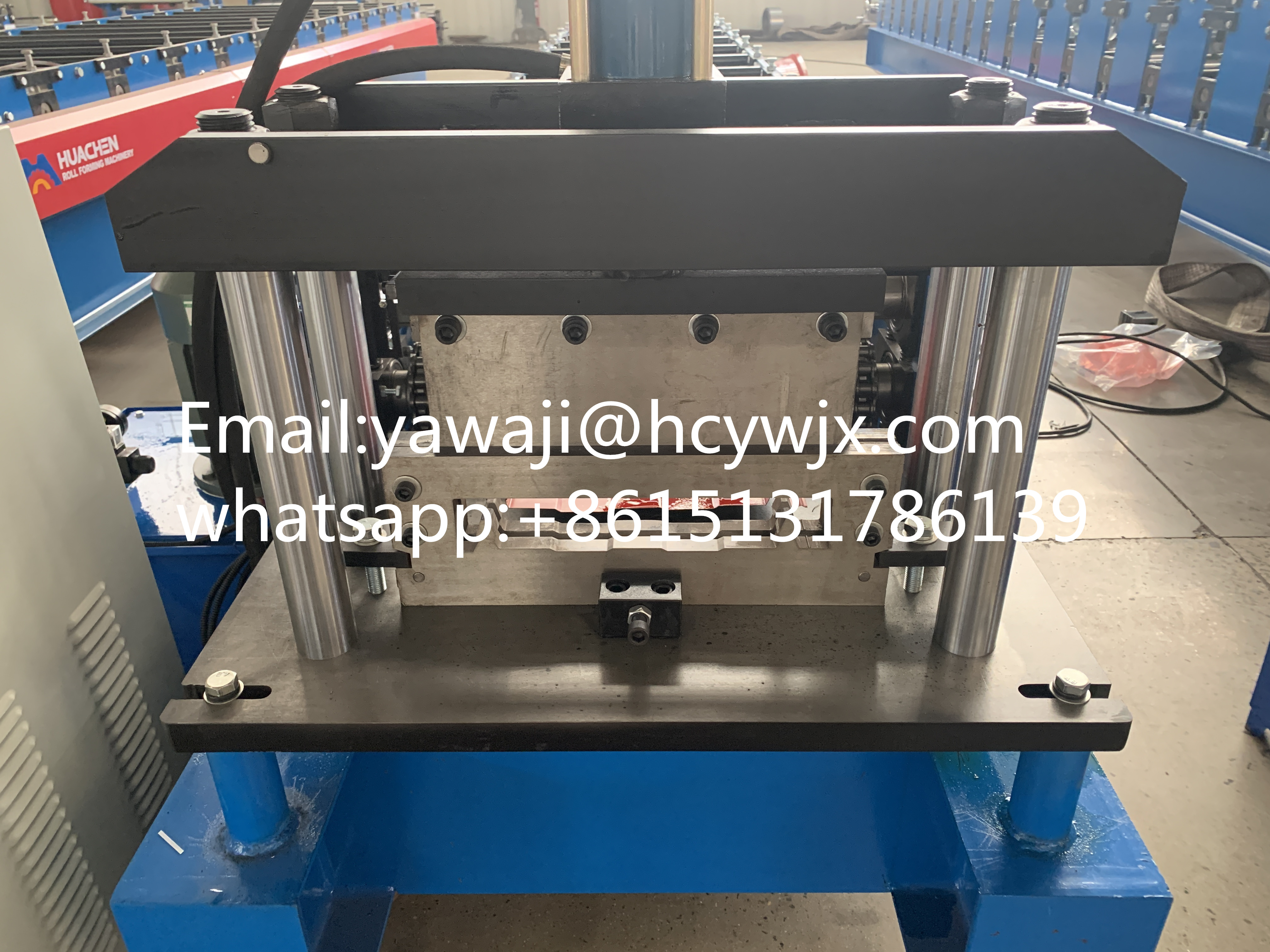

Pressing Section & Cutter

The material of blade is CR12.

With high strength, better hardenability and good wear resistance.

Based on preset programs and logic, the control system can realize the automatic operation of the tile press. The entire process from sheet conveying, forming to shearing can be completed automatically under the precise control of the control system without frequent manual intervention. This not only improves production efficiency, but also reduces the impact of human factors on product quality, ensuring product consistency and stability. At the same time, some advanced control systems also have a fault self-diagnosis function, which can automatically detect the fault point of the equipment and provide corresponding solutions, so that maintenance personnel can quickly repair and shorten the downtime of the equipment.
