Product Description

Body structure: usually welded with solid steel, such as 300mm H steel as the body frame, and 14mm steel plate for the middle plate to ensure that the machine is stable and does not deform under high-intensity work.
Shaft and mold wheel: The shaft is mostly made of 45# steel, and the shaft body size has certain specifications after processing, such as the common shaft body size of φ70mm solid shaft. The mold wheel is also processed and formed with 45# steel, and the surface is hard chrome plated to enhance wear resistance and service life, ensuring that the pressed color steel tile has accurate pattern and smooth surface.

Main Technical Parameters

Working Flow

Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

This part is used to support Coil.

And make the coil in a rotary way.

Bearing capacity: 5T

Inner diameter: 470-530mm

(adjustable according to demand.)

In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

Hydraulic Pump Station

The purpose of this pump station is to drive the cutter to start cutting works.

The hydraulic tank use 46# hydraulic oil.

Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.

Solenoid valve brand: Huade

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual modes.

The unit length of the targeted sheet and quantity can be set in the touchscreen.

The system is simple and easy to operate.

Electrical Component Brand:

1. VFD: Delta

2. Circuit breaker: Delixi

3. Contactor: Delixi

4. Relay: Xinling

5. PLC: Delta

6. Transformer: Delixi

Feeding Table & Pre-Cutter

Guide the coil come into the correct position and going to the roll forming part.

Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.

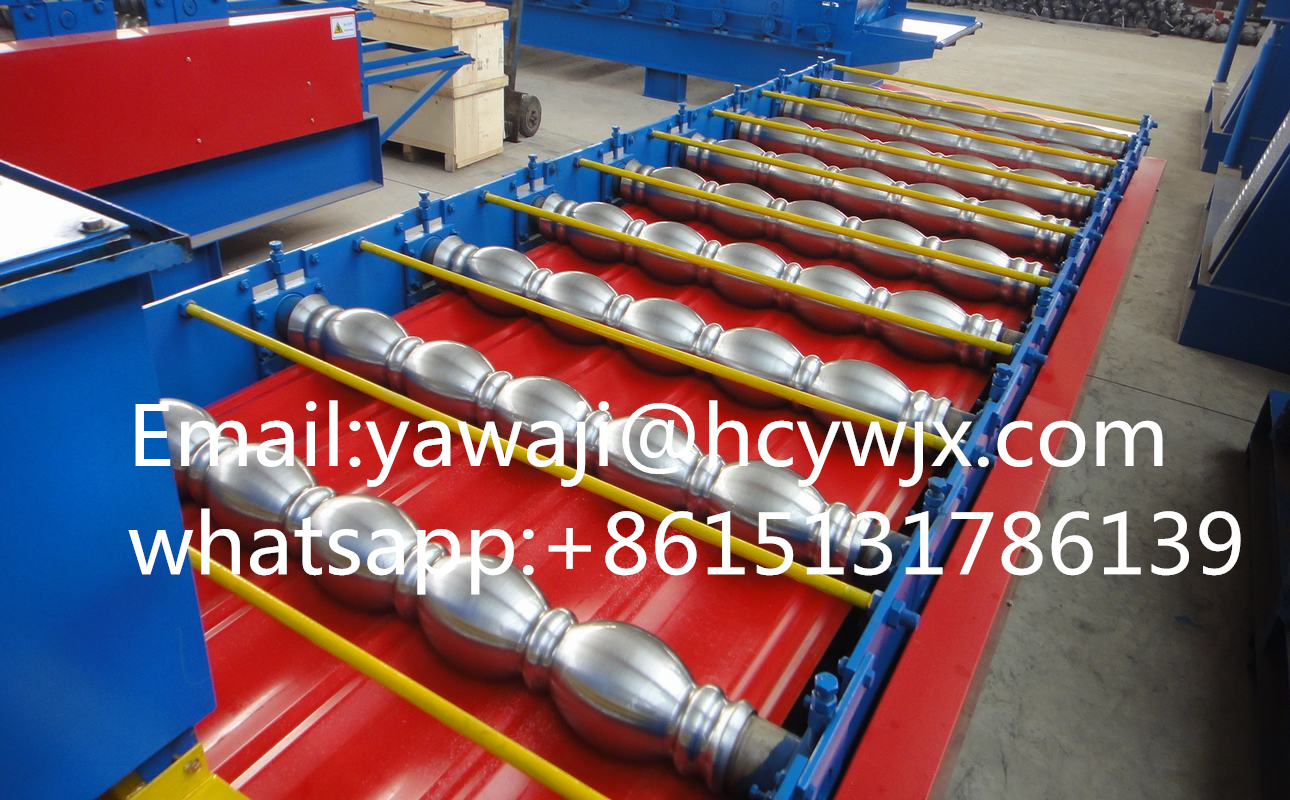

Shaft & Roller

Material is 45# Steel Quenching and Plating.

The processed rollers are smooth, hard and will not rust.

Will not leave any scratches on the sheet when working.

Pressing Section & Cutter

The material of blade is CR12.

With high strength, better hardenability and good wear resistance.

It adopts a highly intelligent industrial electronic programmer PLC inverter control system, which is simple to operate, accurate and stable in performance. It can realize automatic control of a series of actions such as automatic feeding, roll forming, cutting, etc., reduce manual intervention, reduce labor intensity, and improve production efficiency and product quality.

Our factory was founded in 1998. We have been engaged in the roll forming machine manufacturing industry over 25 years.

Main products are color steel roll forming machine, classical glazed tile forming machine, C/Z purlin roll forming machine, gutter machine, ridge cap machine, keel roll forming machine for light steel structure building, floor deck forming machine, sandwich panel production line, guardrail roll forming line; and various kinds full-automatic cold roll forming line such as cable trey production line, double C bugging rack beam production line; and other roofing machine line, like stone caoted roofing sheet prodction line.

And our factory has more than 15 years of export experience. we already sold to more than 100 countries and regions in the world. We have a deep understanding of the profiles used in each country and provide high-quality suggestions for subsequent customers' purchases.

In the production of machines, from parts processing and welding to assembly, we have strict quality control in every step. We must be responsible to every customer.
we were and continue always keep: "not only complete a machine, but also perfect every detail".

We have approved certification of CE, the concept “control every process and perfect all products” is curved in everyone’s mind. Each machine will be via testing before leaving factory, problem machines will never be delivered to customer.
We have more than 15 years experience of export and know very well about the different needs of customers from both in developing countries and developed countries, and provide a large number of customers with satisfactory design plan. Now our products have been exported to more than100 countries and regions of the world, and established a long-term cooperative relationship with clients. We do firmly believe a true partnership never ends with the delivery of the goods and satisfactory after-sales service can make a great difference.
We are willing to promote the economic and technical exchanges with the world, and do positive work to enhance the friendship between people from different countries. We sincerely hope: you and I hand in hand, create the glorious future altogether!

Choose Cangzhou Huachen Roll Forming Machinery Co.,Ltd is worth your trust.
We manufacture high standard roll forming machine for export for nearly 15 years.

Our machines have been exported to more than 100 countries and regions around the world.
Maintained good cooperative relations with customers.
