    Chain Drive Double Deck Roll Forming Machine for PPGI / GI Material Material Type

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC18-23-1000
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 20set per month
    Delivery Time : 20-30 work days
    • Product Details
    • Company Profile

    Chain Drive Double Deck Roll Forming Machine for PPGI / GI Material Material Type

    Product Description

    The double-layer trapezoidal tile press machine body is generally welded with high-strength steel, such as high-quality channel steel or I-beam, to ensure the firmness and stability of the body. This structure can withstand the various stresses generated by the equipment under high-speed operation and high-pressure working environment, prevent the body from deformation, and provide guarantee for the long-term stable operation of the equipment.

    Main Technical Parameters

    MaterialTypePPGI/GI
    Thickness0.3-0.6mm
    Width1000mm
    Roller Stations11/12 Stations
    Roller & Shaft Material45# Steel Quenching and Plating
    Diameter of ShaftΦ70mm
    Cutter MaterialCR12
    Drive TypeChain Drive
    Speed15m/min
    Total Power5.5+5.5KW
    Voltage380V 50Hz 3Phases

    Working Flow
    Decoiling → Material Feeding → Roll Forming → Cutting → Collecting


    Component & Technical Parameters


    This part is used to support Coil.
    And make the coil in a rotary way.
    Bearing capacity: 5T
    Inner diameter: 470-530mm
    (adjustable according to demand.)
    In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

    Hydraulic Pump Station


    The purpose of this pump station is to drive the cutter to start cutting works.
    The hydraulic tank use 46# hydraulic oil.
    Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
    Solenoid valve brand: Huade

    Touch Screen Control Cabinet

    The control cabinet has two modes, automatic and manual modes.
    The unit length of the targeted sheet and quantity can be set in the touchscreen.
    The system is simple and easy to operate.
    Electrical Component Brand:
    1. VFD: Delta
    2. Circuit breaker: Delixi
    3. Contactor: Delixi
    4. Relay: Xinling
    5. PLC: Delta
    6. Transformer: Delixi

    Feeding Table & Pre-Cutter

    Guide the coil come into the correct position and going to the roll forming part.

    Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.

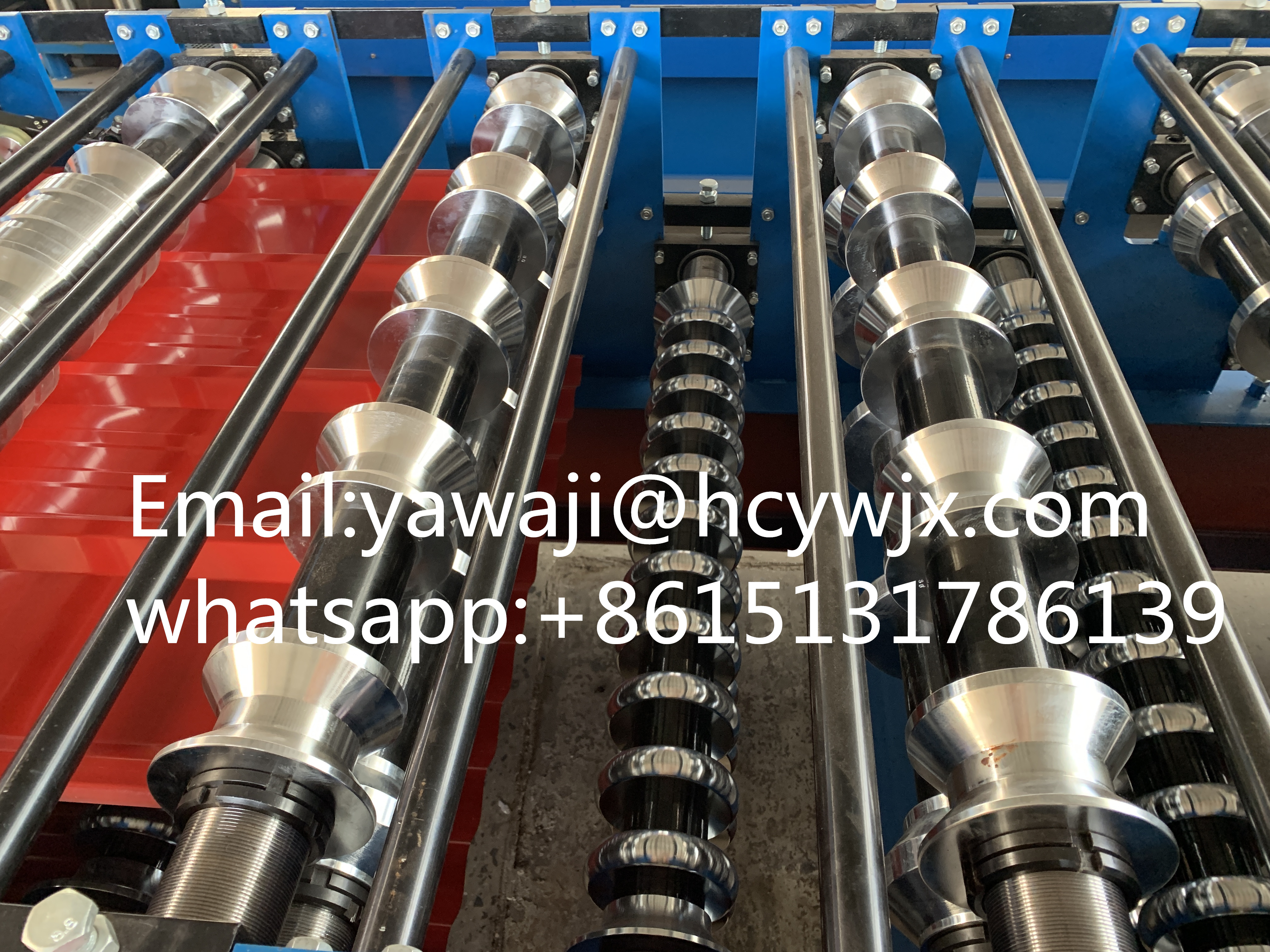

    Shaft & Roller


    Material is 45# Steel Quenching and Plating.

    The processed rollers are smooth, hard and will not rust.

    Will not leave any scratches on the sheet when working.


    Pressing Section & Cutter


    The material of blade is CR12.
    After shaping, the metal is cut into individual slats of the required length. Precision cutting ensures uniformity in the final product.

    The formed double-layer trapezoidal tile continues to be transported forward. When it reaches the set length, the shearing system drives the shearing tool to cut the trapezoidal tile from the plate according to the signal of the positioning device, and the finished double-layer trapezoidal tile is obtained. During the entire production process, the power and transmission system provides power for each working part and ensures the coordinated operation between them, while the control system accurately controls the entire process to achieve automated production.
