    Affordable Chain Drive Double Deck Roll Forming Machine Voltage 380v 50Hz 3 Phases

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC6-22-1220
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 20set per month
    Delivery Time : 20-30 work days
    • Product Details
    • Company Profile

    Affordable Chain Drive Double Deck Roll Forming Machine Voltage 380v 50Hz 3 Phases

    Product Description

    In the construction of prefabricated houses, the tiles produced by the double-layer trapezoidal tile pressing machine can be used as roof and wall materials. Prefabricated houses usually need to be quickly erected and disassembled. This kind of tile is easy to install and disassemble, which can meet the construction needs of prefabricated houses. Moreover, its lightness also makes it easy to transport and store.


    Main Technical Parameters

    MaterialTypePPGI/GI
    Thickness0.3-0.6mm
    Width1220mm
    Roller Stations10/12 Stations
    Roller & Shaft Material45# Steel Quenching and Plating
    Diameter of ShaftΦ70mm
    Cutter MaterialCR12
    Drive TypeChain Drive
    Speed15m/min
    Total Power5.5+5.5KW
    Voltage380V 50Hz 3Phases

    Working Flow
    Decoiling → Material Feeding → Roll Forming → Cutting → Collecting


    Component & Technical Parameters

    Double Deck Roll Forming Machine Manufacturers 0


    This part is used to support Coil.
    And make the coil in a rotary way.
    Bearing capacity: 5T
    Inner diameter: 470-530mm
    (adjustable according to demand.)
    In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

    Hydraulic Pump Station
    Double Deck Roll Forming Machine Manufacturers 1

    The purpose of this pump station is to drive the cutter to start cutting works.
    The hydraulic tank use 46# hydraulic oil.
    Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
    Solenoid valve brand: Huade

    Touch Screen Control Cabinet

    Double Deck Roll Forming Machine Manufacturers 2

    The control cabinet has two modes, automatic and manual modes.
    The unit length of the targeted sheet and quantity can be set in the touchscreen.
    The system is simple and easy to operate.
    Electrical Component Brand:
    1. VFD: Delta
    2. Circuit breaker: Delixi
    3. Contactor: Delixi
    4. Relay: Xinling
    5. PLC: Delta
    6. Transformer: Delixi

    Feeding Table & Pre-Cutter

    Guide the coil come into the correct position and going to the roll forming part.

    Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.

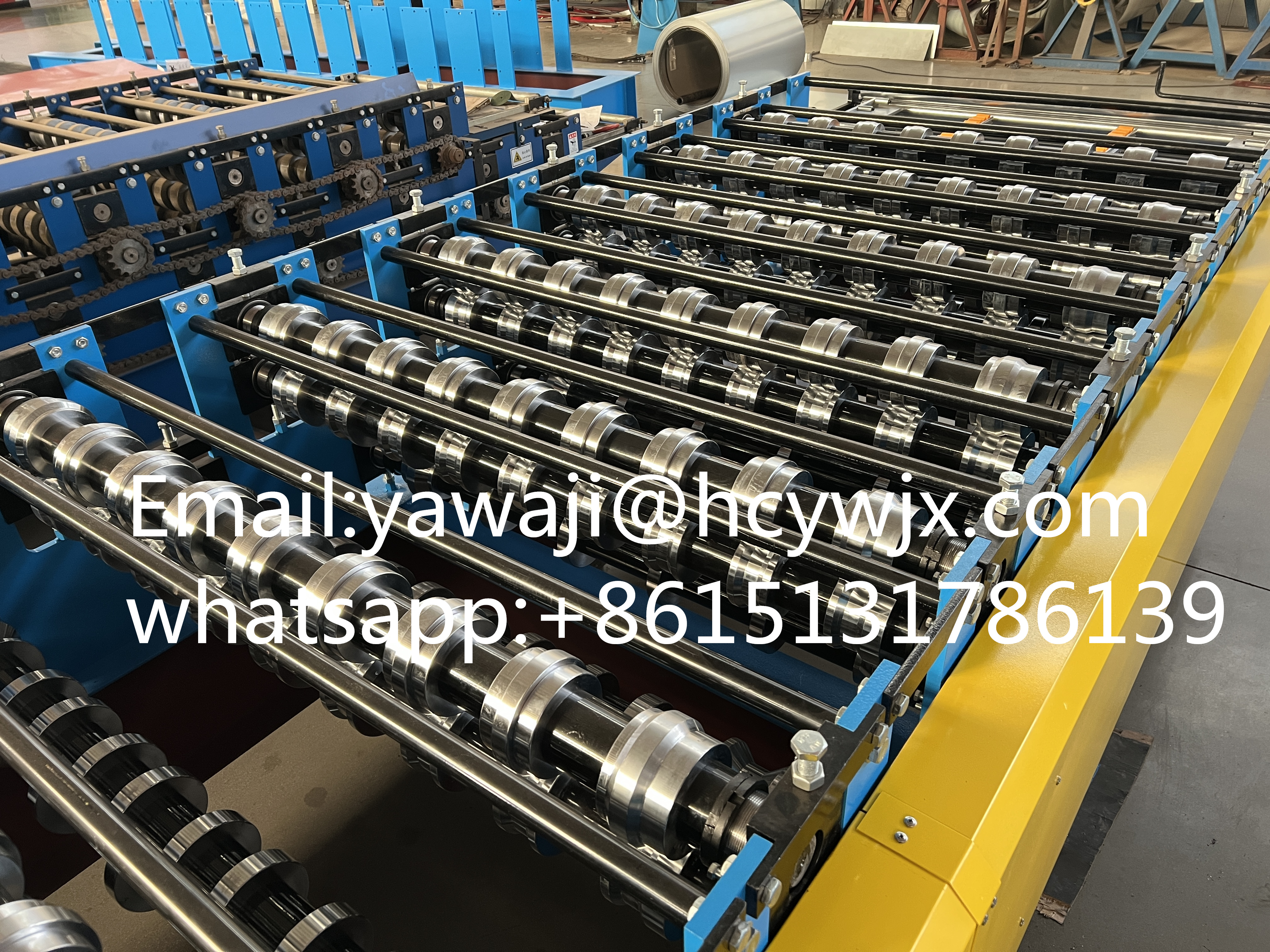

    Shaft & Roller


    Material is 45# Steel Quenching and Plating.

    The processed rollers are smooth, hard and will not rust.

    Will not leave any scratches on the sheet when working.


    Pressing Section & Cutter


    The material of blade is CR12.

    After shaping, the metal is cut into individual slats of the required length. Precision cutting ensures uniformity in the final product.


    For some temporary warehouse buildings, such as material warehouses at construction sites, this type of tile can provide basic roof and wall protection. Its low cost and quick installation method allow temporary warehouses to be built and put into use in a short time.
