    CR12 Cutter Material Double Deck Roll Forming Machinery With Chain Drive

    Product Description

    The fuselage is made of high-strength high-quality steel and undergoes precision welding and heat treatment processes. It has a stable structure and strong pressure resistance, ensuring that it remains stable and reliable under long-term high-load operation.


    Main Technical Parameters

    MaterialTypePPGI/GI
    Thickness0.3-0.6mm
    Width1220mm
    Roller Stations12/13Stations
    Roller & Shaft Material45# Steel Quenching and Plating
    Diameter of ShaftΦ70mm
    Cutter MaterialCR12
    Drive TypeChain Drive
    Speed4m/min
    Total Power5.5+5.5KW
    Voltage380V 50Hz 3Phases

    Working Flow
    Decoiling → Material Feeding → Roll Forming → Cutting → Collecting


    Component & Technical Parameters

    Double Deck Roll Forming Machine Manufacturers 0


    This part is used to support Coil.
    And make the coil in a rotary way.
    Bearing capacity: 5T
    Inner diameter: 470-530mm
    (adjustable according to demand.)
    In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

    Hydraulic Pump Station
    Double Deck Roll Forming Machine Manufacturers 1

    The purpose of this pump station is to drive the cutter to start cutting works.
    The hydraulic tank use 46# hydraulic oil.
    Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
    Solenoid valve brand: Huade

    Touch Screen Control Cabinet

    Double Deck Roll Forming Machine Manufacturers 2

    The control cabinet has two modes, automatic and manual modes.
    The unit length of the targeted sheet and quantity can be set in the touchscreen.
    The system is simple and easy to operate.
    Electrical Component Brand:
    1. VFD: Delta
    2. Circuit breaker: Delixi
    3. Contactor: Delixi
    4. Relay: Xinling
    5. PLC: Delta
    6. Transformer: Delixi

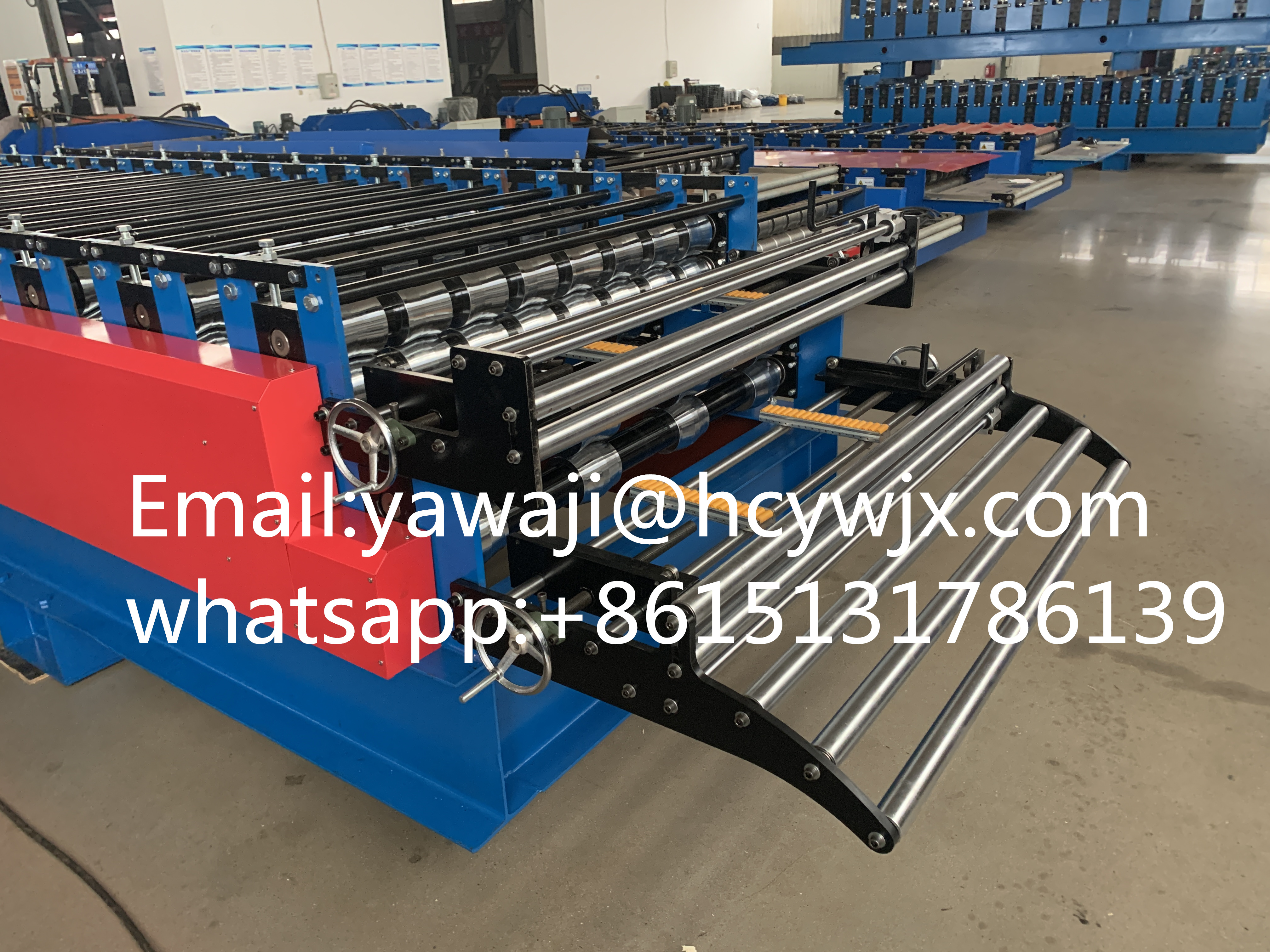

    Feeding Table & Pre-Cutter


    Guide the coil come into the correct position and going to the roll forming part.

    Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.

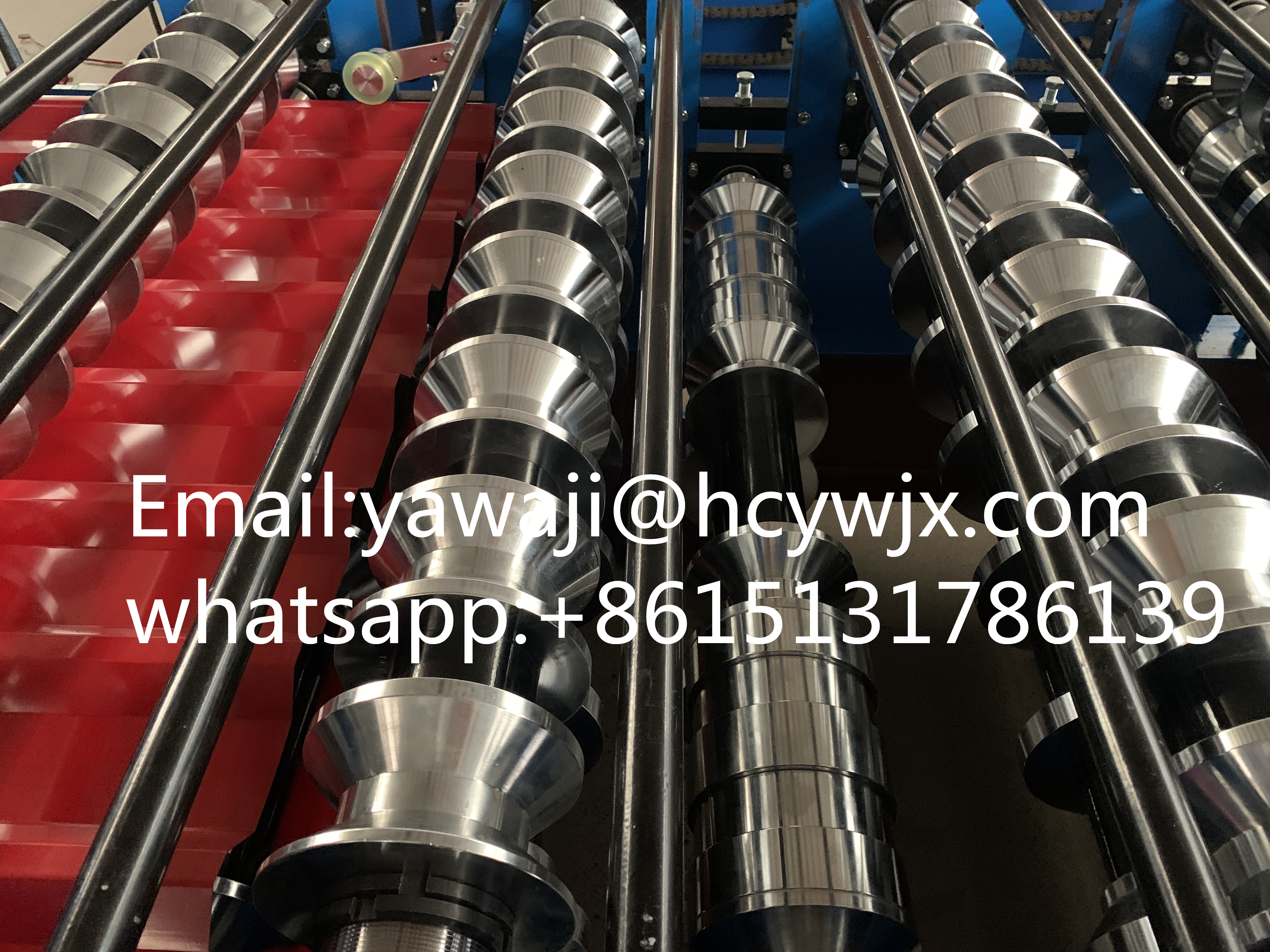

    Shaft & Roller


    Material is 45# Steel Quenching and Plating.

    The processed rollers are smooth, hard and will not rust.

    Will not leave any scratches on the sheet when working.


    Pressing Section & Cutter


    The material of blade is CR12.

    After shaping, the metal is cut into individual slats of the required length. Precision cutting ensures uniformity in the final product.


    Equipped with an advanced CNC operating system, the operating interface is simple and intuitive, and workers can easily achieve precise control of the tile press. Parameters such as sheet thickness, corrugation spacing, and forming speed can be flexibly adjusted, and the length accuracy is controlled within ±1mm, which greatly improves production flexibility and product quality stability.
