    Double Deck Roll Forming Machinec With PPGI / GI Material Type And 5.5 5.5KW Total Power

    Product Description


    The innovative double-layer mold design can produce two different sizes of trapezoidal tiles at the same time, meeting the diverse construction needs, effectively improving production efficiency, and reducing the time cost of equipment replacement.
    The machine body is made of high-strength high-quality steel, and after precision welding and heat treatment, the structure is stable and has strong pressure resistance, ensuring that it remains stable and reliable under long-term high-load operation.

    Main Technical Parameters

    MaterialTypePPGI/GI
    Thickness0.3-0.6mm
    Width1220mm
    Roller Stations12/13Stations
    Roller & Shaft Material45# Steel Quenching and Plating
    Diameter of ShaftΦ70mm
    Cutter MaterialCR12
    Drive TypeChain Drive
    Speed4m/min
    Total Power5.5+5.5KW
    Voltage380V 50Hz 3Phases

    Working Flow
    Decoiling → Material Feeding → Roll Forming → Cutting → Collecting


    Component & Technical Parameters

    Double Deck Roll Forming Machine Manufacturers 0


    This part is used to support Coil.
    And make the coil in a rotary way.
    Bearing capacity: 5T
    Inner diameter: 470-530mm
    (adjustable according to demand.)
    In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

    Hydraulic Pump Station
    Double Deck Roll Forming Machine Manufacturers 1

    The purpose of this pump station is to drive the cutter to start cutting works.
    The hydraulic tank use 46# hydraulic oil.
    Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
    Solenoid valve brand: Huade

    Touch Screen Control Cabinet

    Double Deck Roll Forming Machine Manufacturers 2

    The control cabinet has two modes, automatic and manual modes.
    The unit length of the targeted sheet and quantity can be set in the touchscreen.
    The system is simple and easy to operate.
    Electrical Component Brand:
    1. VFD: Delta
    2. Circuit breaker: Delixi
    3. Contactor: Delixi
    4. Relay: Xinling
    5. PLC: Delta
    6. Transformer: Delixi

    Feeding Table & Pre-Cutter


    Guide the coil come into the correct position and going to the roll forming part.

    Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.


    Shaft & Roller

    Material is 45# Steel Quenching and Plating.

    The processed rollers are smooth, hard and will not rust.

    Will not leave any scratches on the sheet when working.


    Pressing Section & Cutter


    The material of blade is CR12.

    After shaping, the metal is cut into individual slats of the required length. Precision cutting ensures uniformity in the final product.

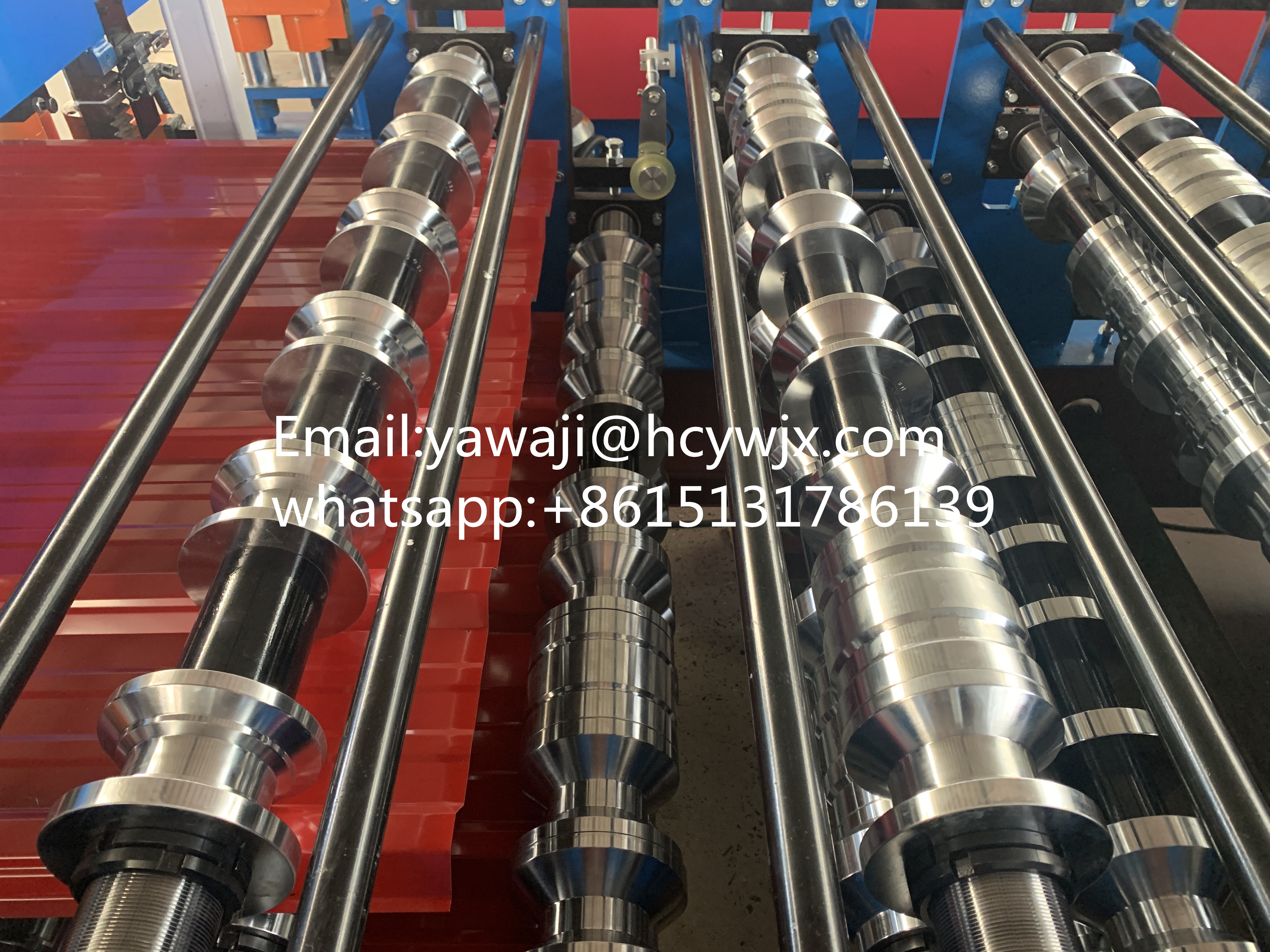

    The mold is made of special alloy steel and has undergone multiple fine processing and surface hardening treatments. Its wear resistance is more than 50% higher than that of ordinary molds, which effectively reduces the replacement frequency of molds, extends the service life of the equipment, and saves companies a lot of mold replacement costs and maintenance time.
