    Double Layer Roofing Sheet Roll Forming Machine For PPGI / GI Material

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC8-25-1250
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 20set per month
    Delivery Time : 20-30 work days
    • Product Details
    • Company Profile

    Double Layer Roofing Sheet Roll Forming Machine For PPGI / GI Material

    Product Description
    In the industrial plant, the large double-layer tile pressing machine operates efficiently in a spacious and bright workshop. Before starting the machine, the operator will carefully check each component of the equipment to ensure that there is no looseness or abnormality. Then, the huge metal coil is accurately installed on the unloading rack and the position is adjusted so that the coil can enter the machine smoothly. After starting the equipment, the operator enters the pre-set tile specification parameters, such as the height and spacing of the corrugated tiles, on the console.

    Main Technical Parameters

    MaterialTypePPGI/GI
    Thickness0.3-0.6mm
    Width1250mm
    Roller Stations12/14 Stations
    Roller & Shaft Material45# Steel Quenching and Plating
    Diameter of ShaftΦ70mm
    Cutter MaterialCR12
    Drive TypeChain Drive
    Speed15m/min
    Total Power5.5+5.5KW
    Voltage380V 50Hz 3Phases

    Working Flow
    Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

    Component & Technical Parameters


    This part is used to support Coil.
    And make the coil in a rotary way.
    Bearing capacity: 5T
    Inner diameter: 470-530mm
    (adjustable according to demand.)
    In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
    Hydraulic Pump Station

    The purpose of this pump station is to drive the cutter to start cutting works.
    The hydraulic tank use 46# hydraulic oil.
    Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
    Solenoid valve brand: Huade
    Touch Screen Control Cabinet

    The control cabinet has two modes, automatic and manual modes.
    The unit length of the targeted sheet and quantity can be set in the touchscreen.
    The system is simple and easy to operate.
    Electrical Component Brand:
    1. VFD: Delta
    2. Circuit breaker: Delixi
    3. Contactor: Delixi
    4. Relay: Xinling
    5. PLC: Delta
    6. Transformer: Delixi
    Feeding Table & Pre-Cutter



    Guide the coil come into the correct position and going to the roll forming part.
    Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.

    Shaft & Roller


    Material is 45# Steel Quenching and Plating.
    The processed rollers are smooth, hard and will not rust.
    Will not leave any scratches on the sheet when working.

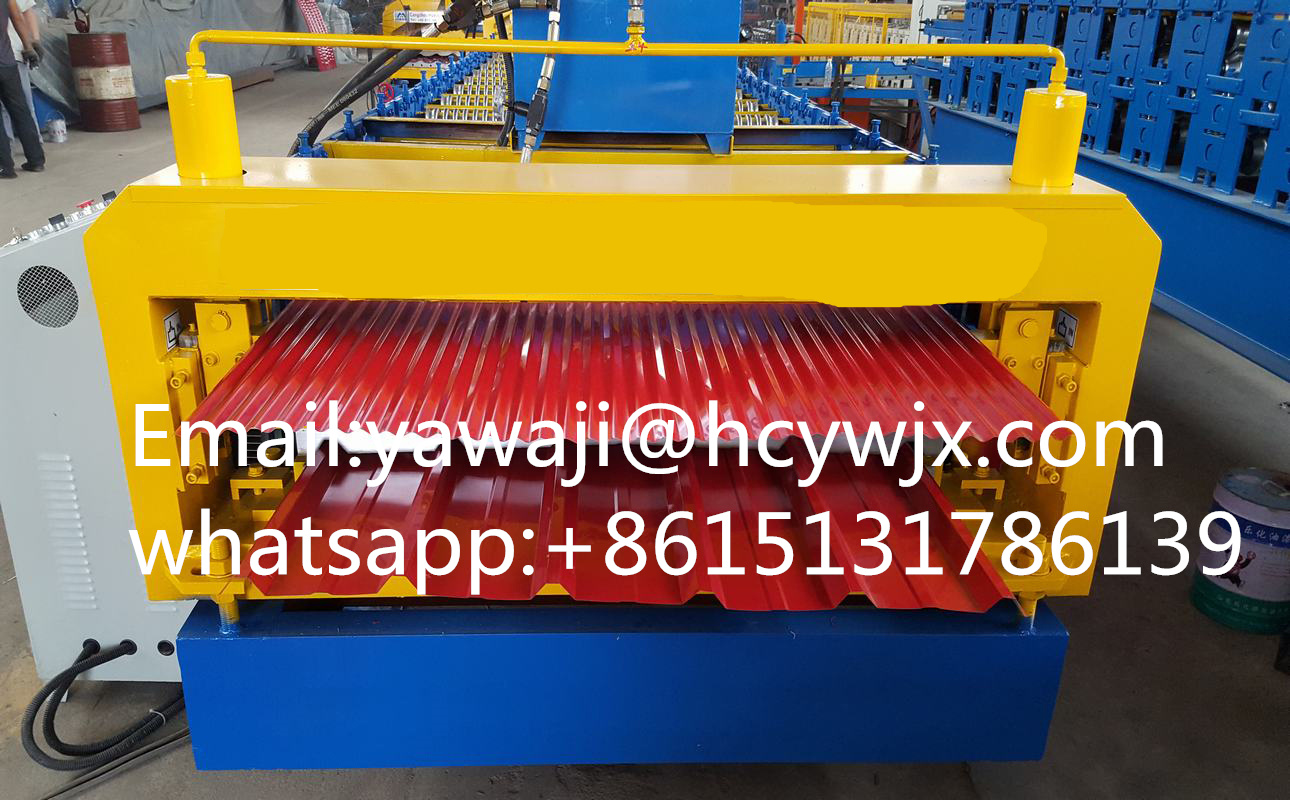

    Pressing Section & Cutter


    The material of blade is CR12.
    After shaping, the metal is cut into individual slats of the required length. Precision cutting ensures uniformity in the final product.
    The metal coil is slowly fed into the tile pressing machine, and first passes through the leveling device to level the uneven surface of the coil, laying the foundation for subsequent precise forming. Then, the coil enters the double-layer mold area, and under the strong pressure, the upper and lower layers are pressed into trapezoidal tiles of different specifications at the same time.
