    Steel Deck Roll Forming Machine for PPGI / GI

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC153-840
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 20set per month
    Delivery Time : 20-30 work days
    • Product Details
    • Company Profile

    Steel Deck Roll Forming Machine for PPGI / GI

    Product Description

    The floor decking produced by the floor decking forming machine uses a high-precision forming process to ensure that the floor slabs are tightly spliced, creating a flat and safe indoor floor and reducing the maintenance costs caused by uneven floors in the later stage.


    Main Technical Parameters

    MaterialTypePPGI/GI
    Thickness0.8-1.2mm
    Width840mm
    Roller Stations28Stations
    Roller & Shaft Material45# Steel Quenching and Plating
    Diameter of ShaftΦ90mm
    Cutter MaterialCR12
    Drive TypeChain Drive
    Speed15m/min
    Control SystemPLC Control
    Total Power11+11+7.5KW
    Voltage380V 50Hz 3Phases

    Working Flow

    Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

    Component & Technical Parameters

    Steel Deck Roll Forming Machine Xiamen Machine Floor Tile Decking Making Machine 0


    his part is used to support Coil.

    And make the coil in a rotary way.

    Bearing capacity: 5T

    Inner diameter: 470-530mm

    (adjustable according to demand.)

    In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.


    Hydraulic Pump Station

    Steel Deck Roll Forming Machine Xiamen Machine Floor Tile Decking Making Machine 1


    The purpose of this pump station is to drive the cutter to start cutting works.

    The hydraulic tank use 46# hydraulic oil.

    Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.


    Touch Screen Control Cabinet

    Steel Deck Roll Forming Machine Xiamen Machine Floor Tile Decking Making Machine 2


    The control cabinet has two modes, automatic and manual modes.

    The unit length of the targeted sheet and quantity can be set in the touchscreen.

    The system is simple and easy to operate.


    Output Table

    Steel Deck Roll Forming Machine Xiamen Machine Floor Tile Decking Making Machine 3

    This part is used to collect the formed products.

    The bracket is equipped with rollers to facilitate the product forwarding without being scratched.


    Feeding Table

    Guide the coil come into the correct position and passed to the roll forming machine.


    Shaft & Roller


    Material is 45# Steel Quenching and Plating.

    The processed rollers are smooth, hard and will not rust.

    Will not leave any scratches on the sheet when working.

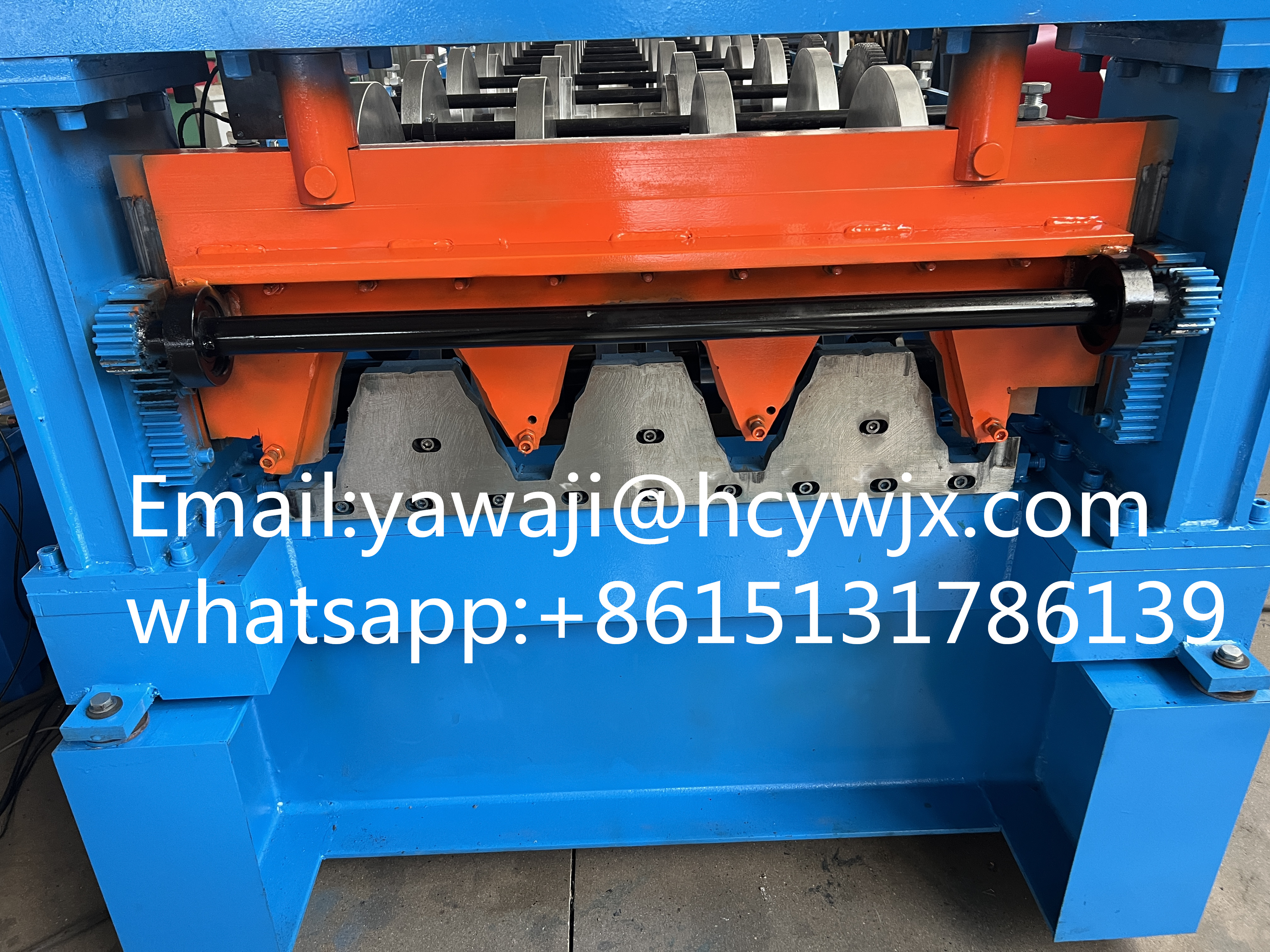

    Cutter


    The material of blade is CR12.

    With high strength, better hardenability and good wear resistance.


    At the same time, its efficient production capacity can provide a large number of floor decking in a short period of time to meet the needs of rapid construction of commercial buildings, so that the project can be put into operation as soon as possible and seize the market opportunity.
