Brand Name : | HC |
Model Number : | HC17-32-390 |
Certification : | CE |
Payment Terms : | L/C, T/T |
Supply Ability : | 20set per month |
Delivery Time : | 20-30 work days |

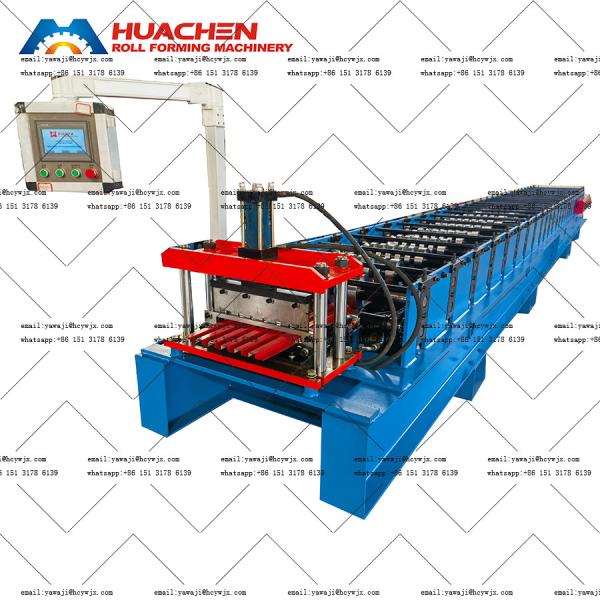

Product Description
After the equipment is started, the rolled metal sheet is first
placed on the unwinder, smoothly unrolled and transported to the
leveling device. The leveling device repeatedly rolls the sheet
through multiple sets of leveling rollers to eliminate the
unevenness of the sheet during transportation or storage, ensuring
that the sheet entering the subsequent forming process is in a flat
state.
Main Technical Parameters
Material | Type | PPGI/GI |
Thickness | 0.3-0.6mm | |
Width | 390mm | |
Roller Stations | 26Stations | |
Roller & Shaft Material | 45# Steel Quenching and Plating | |
Diameter of Shaft | Φ70mm | |
Cutter Material | CR12 | |
Drive Type | Chain Drive | |
Speed | 15m/min | |
Total Power | 5.5+5.5KW | |
Voltage | 380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
Able to accommodate a variety of metal coils of different
specifications, including different widths, thicknesses and
materials
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
When the equipment encounters abnormal resistance or excessive
pressure, it can automatically adjust the pressure of the hydraulic
system to avoid damage to the equipment due to overload, thereby
improving the reliability and stability of the floor deck forming
machine.
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
The control cabinet can be interconnected with other equipment,
such as working with the uncoiler, hydraulic pump station, etc., to
ensure the efficient and stable operation of the entire floor
decking forming machine system, providing a strong guarantee for
the production of high-quality floor decking.
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Pressing Section & Cutter
![]() |
