1250mm Aluminium Glazed Tile Forming Machine

    Buy cheap 1250mm Aluminium Glazed Tile Forming Machine from wholesalers

    Buy cheap 1250mm Aluminium Glazed Tile Forming Machine from wholesalers
    • Buy cheap 1250mm Aluminium Glazed Tile Forming Machine from wholesalers

    1250mm Aluminium Glazed Tile Forming Machine

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC30-200-1000-1250
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 20set per month
    Delivery Time : 20-30 work days
    • Product Details
    • Company Profile

    1250mm Aluminium Glazed Tile Forming Machine

    Product Description
    In various antique building projects, such as temples, Taoist temples, ancient city towers, etc., the colored steel glazed tiles produced by the glazed tile pressing machine can not only restore the ancient charm of traditional buildings, but also have the durability and waterproofness of modern metal materials, which greatly reduces the maintenance cost and prolongs the service life of the building.

    Main Technical Parameters

    MaterialTypePPGI/GI
    Thickness0.3-0.6mm
    Width1250mm
    Roller Stations15Stations
    Roller & Shaft Material45# Steel Quenching and Plating
    Diameter of ShaftΦ70mm
    Cutter MaterialCR12
    Drive TypeChain Drive
    Speed4m/min
    Total Power5.5+5.5KW
    Voltage380V 50Hz 3Phases

    Working Flow
    Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

    Component & Technical Parameters


    This part is used to support Coil.
    And make the coil in a rotary way.
    Bearing capacity: 5T
    Inner diameter: 470-530mm

    Able to accommodate a variety of metal coils of different specifications, including different widths, thicknesses and materials​

    Hydraulic Pump Station

    When the equipment encounters abnormal resistance or excessive pressure, it can automatically adjust the pressure of the hydraulic system to avoid damage to the equipment due to overload, thereby improving the reliability and stability of the floor deck forming machine.
    Touch Screen Control Cabinet

    The control cabinet has two modes, automatic and manual modes.
    The unit length of the targeted sheet and quantity can be set in the touchscreen.
    The system is simple and easy to operate.

    The control cabinet can be interconnected with other equipment, such as working with the uncoiler, hydraulic pump station, etc., to ensure the efficient and stable operation of the entire floor decking forming machine system, providing a strong guarantee for the production of high-quality floor decking.

    Feeding Table & Pre-Cutter

    In the conveying process, the feeding table accurately controls the conveying speed and position of the plate, and closely cooperates with the subsequent leveling device, forming equipment, etc. It feeds the plate into the leveling process at a stable speed, ensuring that the plate is in a good conveying state before being leveled, laying the foundation for high-quality leveling operations.

    Shaft & Roller

    Material is 45# Steel Quenching and Plating.
    The processed rollers are smooth, hard and will not rust.
    Will not leave any scratches on the sheet when working.

    Inside the molding machine, multiple shafts cooperate with each other to support the rollers and other components, ensuring that they maintain a stable position and posture during operation.

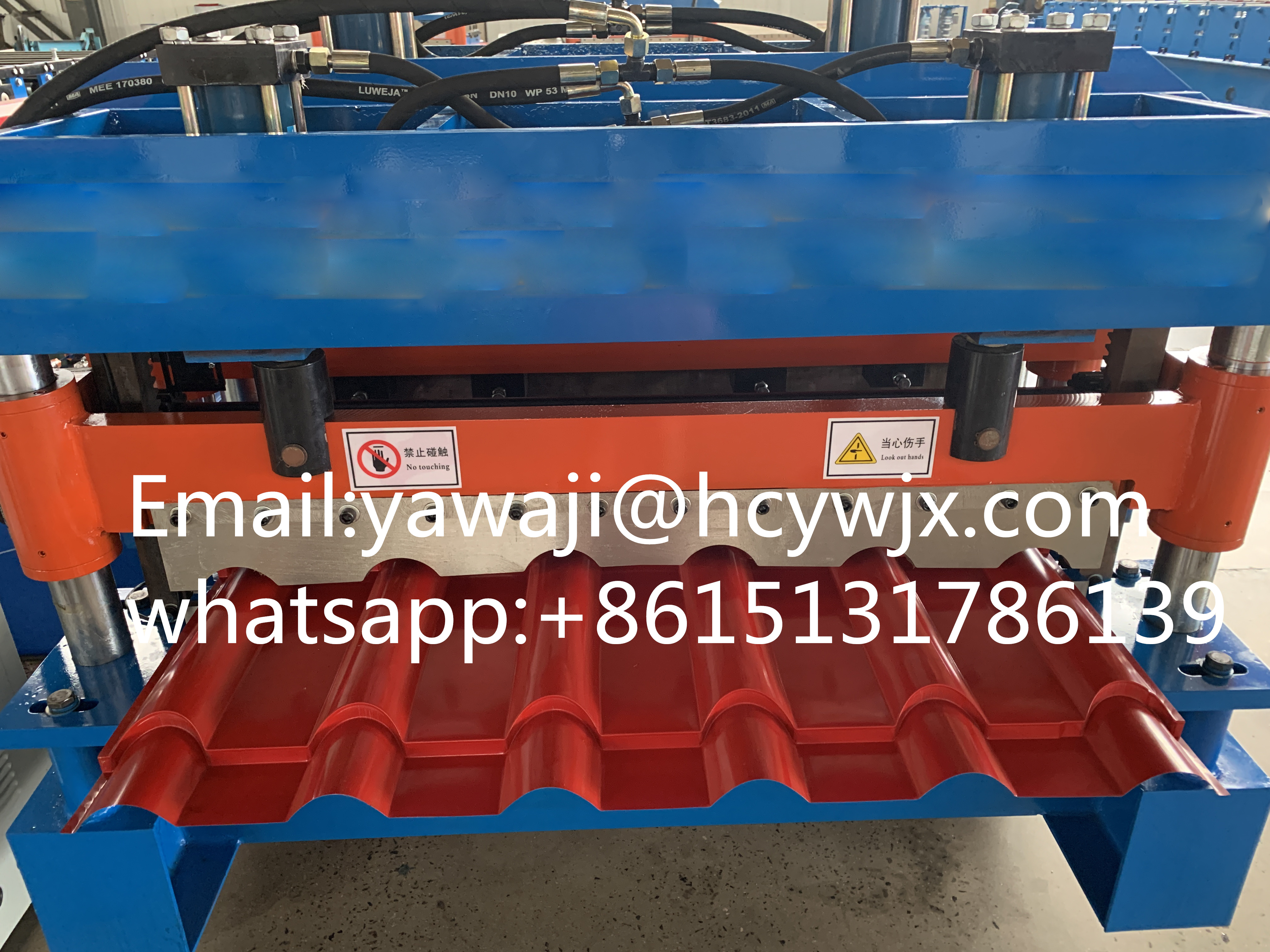

    Pressing Section & Cutter

    In a high-speed forming machine, the cutter can quickly complete the cutting action, matching the forming speed of the board, ensuring the continuity of the entire production process and avoiding production stagnation caused by cutting delays. At the same time, the quality and performance of the cutter are directly related to the cutting surface quality of the floor decking.
    The material of blade is CR12.
    With high strength, better hardenability and good wear resistance.
